a2631251

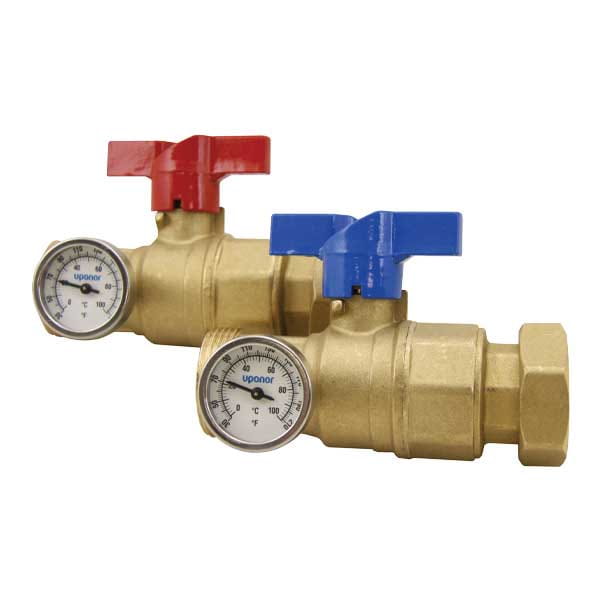

Manifold Supply and Return Ball Valves with Temperature Gauges, set of 2

Part no.A2631251
StatusActive

Part information and details

Dimensions

Weight per UOM [lbs/UOM]4.45 lbs/uom

Standards

StandardsR32: ISO 228-G 1¼"|ASTM F877

Technical Data

Cv Through38.5
Cv38.5
End Size 1 [inch|mm]1-1/4"
End Size 2 [inch|mm]1-1/4"
End Type 1ISO 228-G
End Type 2ISO 228-G
Operating Pressure 1 [PSI]160 psi
Operating Pressure 2 [PSI]100 psi
Operating Pressure 3 [PSI]80 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]180 °f
Operating Temperature 3 [°F]200 °f
Material groupBrass
Prop 65 label required?Yes
