lf2841050

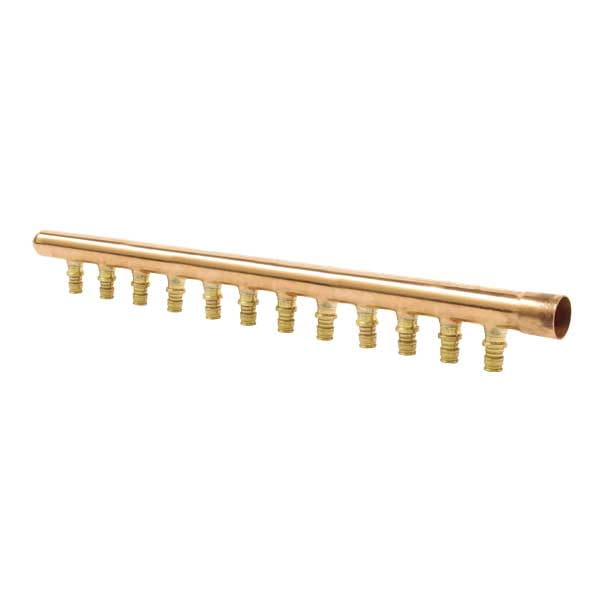

ProPEX 1" Copper Branch Manifold with 1/2" ProPEX LF brass outlets, 12 outlets

Part no.LF2841050
StatusActive

Part information and details

Codes

CodesUPC|IBC|IRC|IPC|NPC of Canada|UMC|NSPC|IMC

Dimensions

A [frac]20 43/64 inch
A [inch]20.675 inch
B [frac]63/64 inch
B [inch]0.987 inch
C [frac]41/64 inch
C [inch]0.639 inch
D [frac]1 1/2 inch
D [inch]1.5 inch
E [frac]1 9/64 inch
E [inch]1.143 inch
F [frac]45/64 inch
F [inch]0.709 inch
G [frac]2 31/64 inch
G [inch]2.479 inch
H [frac]1 1/4 inch
H [inch]1.256 inch
Manifold Body Size (I.D.) [inch]1 inch
Weight per UOM [lbs/UOM]1.9 lbs/uom

Listings

ListingsIAPMO-ES|ICC-ES-PMG|cNSFus-pw-G|U.P.Code

Standards

StandardsNSF-372|ASTM F877|ASTM F1960|CSA B137.5|NSF-61|NSF-14

Technical Data

End Size 1 [inch|mm]1/2"
End Size 2 [inch|mm]1"
End Type 1ProPEX
End Type 2Sweat
Flow Rate Max. [gpm]21 gpm
Operating Pressure 1 [PSI]160 psi
Operating Pressure 2 [PSI]100 psi
Operating Pressure 3 [PSI]80 psi
Operating Pressure 4 [PSI]149 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]180 °f
Operating Temperature 3 [°F]200 °f
Operating Temperature 4 [°F]210 °f
Material manifoldType L Copper
Material groupCopper
Prop 65 label required?Yes
Submittal Subcomponent MaterialType L Copper; C69300 Brass
