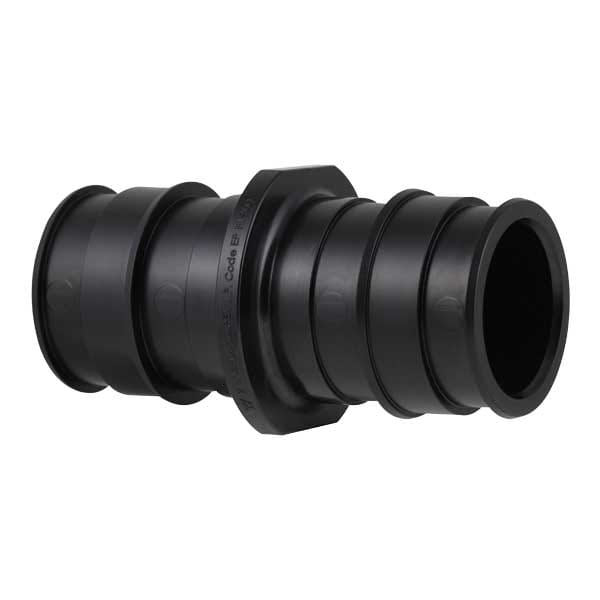

ProPEX EP Coupling, 2 1/2" PEX x 1 1/2" PEX

Part no.Q4772515
StatusActive
Download submittal

Find a distributor

Availability of specific products varies by distributor.

Part information and details

Codes

CodesIMC|UPC|IBC|IRC|IPC|NPC of Canada|UMC|NSPC

Dimensions

A [frac]2 27/32 inch
A [inch]2.84 inch
B [frac]1/4 inch
B [inch]0.25 inch
C [frac]1 47/64 inch
C [inch]1.734 inch
D [frac]3 19/32 inch
D [inch]3.6 inch
E [frac]4 53/64 inch
E [inch]4.824 inch
F [frac]2 51/64 inch
F [inch]2.8 inch
G [frac]1 13/16 inch
G [inch]1.82 inch
H [frac]1 13/32 inch
H [inch]1.4 inch
Equivalent length through [ft]7.5 ft
Weight per UOM [lbs/UOM]0.35 lbs/uom

Listings

ListingsIAPMO-ES|ICC-ES-PMG|cNSFus-pw|UL|U.P.Code|cQAIus P321|HUD MR 1269

Standards

StandardsASTM F1960|ASTM E119/UL 263|ASTM E84|ASTM E814/ULC S115|ASTM F877|CSA B137.5|ULC S102.2|NSF-61|ULC S101|NSF-14

Technical Data

Cv35.9
End Size 1 [inch|mm]2-1/2"
End Size 2 [inch|mm]1-1/2"
End Type 1ProPEX
End Type 2ProPEX
Operating Pressure 1 [PSI]160 psi
Operating Pressure 2 [PSI]100 psi
Operating Pressure 3 [PSI]80 psi
Operating Temperature 1 [°F]73 °F
Operating Temperature 2 [°F]180 °F
Operating Temperature 3 [°F]200 °F
Material groupEngineered Polymer
