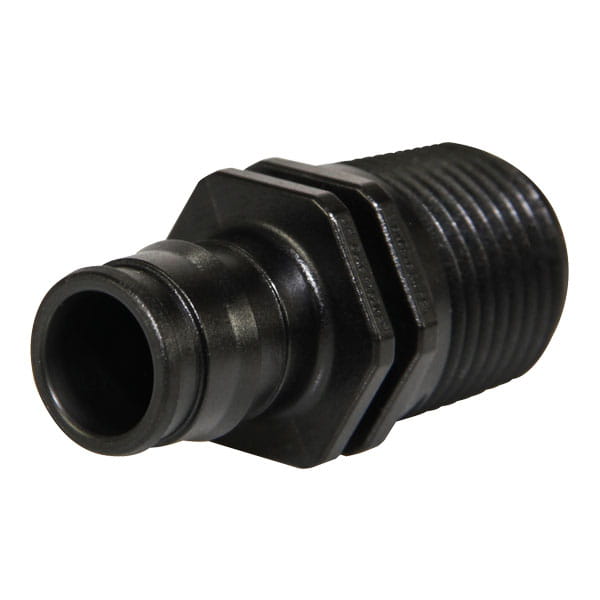

ProPEX EP Male Threaded Adapter, 1/2" PEX x 1/2" NPT

Part no.Q4625050
StatusActive
Download submittal

Find a distributor

Availability of specific products varies by distributor.

Part information and details

Codes

CodesUPC|IRC|IPC|NPC of Canada

Dimensions

A [frac]1 53/64 inch
A [inch]1.826 inch
B [frac]1 3/32 inch
B [inch]1.1 inch
C [frac]61/64 inch
C [inch]0.95 inch
D [frac]23/64 inch
D [inch]0.358 inch
E [frac]23/32 inch
E [inch]0.726 inch
F [frac]55/64 inch
F [inch]0.86 inch
G [frac]15/32 inch
G [inch]0.475 inch
Weight per UOM [lbs/UOM]0.02 lbs/uom

Listings

ListingsU.P.Code|cNSFus-pw

Standards

StandardsASTM F1960|CSA B137.5|NSF-61|NSF-14|NSF-372|ASTM F877

Technical Data

Cv5
End Size 1 [inch|mm]1/2"
End Size 2 [inch|mm]1/2"
End Type 1ProPEX
End Type 2MNPT
Operating Pressure 1 [PSI]160 psi
Operating Pressure 2 [PSI]100 psi
Operating Pressure 3 [PSI]80 psi
Operating Temperature 1 [°F]73 °F
Operating Temperature 2 [°F]180 °F
Operating Temperature 3 [°F]200 °F
Material groupEngineered Polymer
