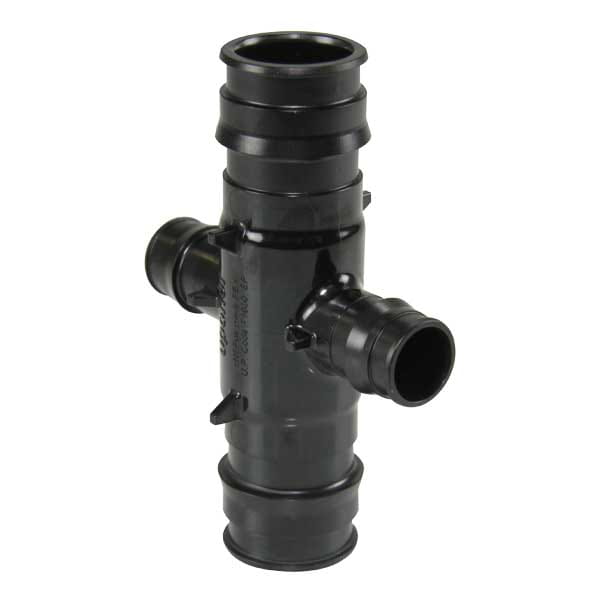

ProPEX EP Opposing-port Tee 1 1/4" x 1 1/4" x 3/4" x 3/4

Part no.Q4801375
StatusActive

Part information and details

Codes

CodesIMC|UPC|IBC|IRC|IPC|NPC of Canada|UMC|NSPC

Dimensions

A [frac]1 29/64 inch
A [inch]1.455 inch
B [frac]29/32 inch
B [inch]0.9 inch
C [frac]61/64 inch
C [inch]0.955 inch
D [frac]3/4 inch
D [inch]0.75 inch
E [frac]4 45/64 inch
E [inch]4.71 inch
F [frac]3 13/32 inch
F [inch]3.41 inch
G [frac]1 13/16 inch
G [inch]1.82 inch
Equivalent length branch [ft]5.29 ft
Equivalent length through [ft]0.83 ft
Weight per UOM [lbs/UOM]0.12 lbs/uom

Listings

ListingsIAPMO-ES|ICC-ES-PMG|cNSFus-pw|UL|U.P.Code|cQAIus P321|HUD MR 1269

Standards

StandardsASTM F1960|ASTM E119/UL 263|ASTM E84|ASTM E814/ULC S115|ASTM F877|CSA B137.5|ULC S102.2|NSF-61|ULC S101|NSF-14

Technical Data

Cv Branch9.1
Cv Through57.1
End Size 1 [inch|mm]1-1/4"
End Size 2 [inch|mm]1-1/4"
End Size 3 [inch|mm]3/4"
End Size 4 [inch|mm]3/4"
End Type 1ProPEX
End Type 2ProPEX
End Type 3ProPEX
End Type 4ProPEX
Operating Pressure 1 [PSI]160 psi
Operating Pressure 2 [PSI]100 psi
Operating Pressure 3 [PSI]80 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]180 °f
Operating Temperature 3 [°F]200 °f
Material groupEngineered Polymer
