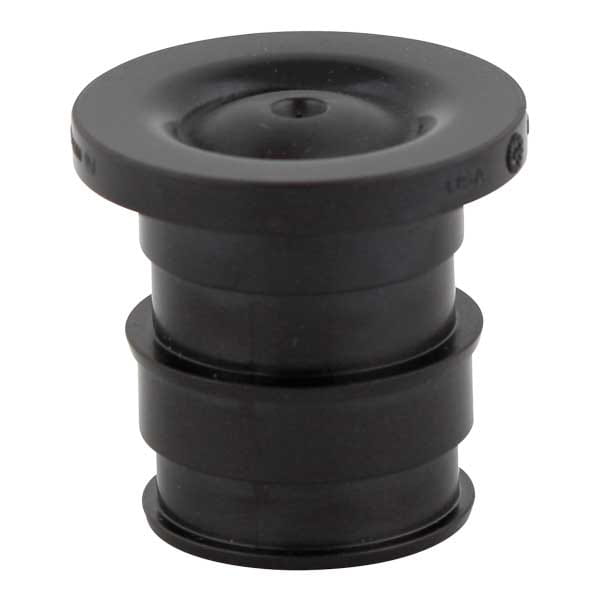

ProPEX EP Plug for 1 1/4" PEX

Part no.Q4351250
StatusActive

Part information and details

Codes

CodesIMC|UPC|IBC|IRC|IPC|NPC of Canada|UMC|NSPC

Dimensions

A [frac]1 41/64 inch
A [inch]1.645 inch
B [frac]1 47/64 inch
B [inch]1.74 inch
C [frac]1 47/64 inch
C [inch]1.74 inch
D [frac]1 7/16 inch
D [inch]1.445 inch
Weight per UOM [lbs/UOM]0.04 lbs/uom

Listings

ListingsIAPMO-ES|ICC-ES-PMG|UL|U.P.Code|cQAIus P321|HUD MR 1269|cNSFus-pw-fs

Standards

StandardsASTM F1960|UL 1821|ASTM E119/UL 263|ASTM E814/ULC S115|ASTM F877|CSA B137.5|ULC S102.2|NSF-61|ULC S101|NSF-14

Technical Data

End Size 1 [inch|mm]1-1/4"
End Type 1ProPEX
Operating Pressure 1 [PSI]160 psi
Operating Pressure 2 [PSI]100 psi
Operating Pressure 3 [PSI]80 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]180 °f
Operating Temperature 3 [°F]200 °f
Material groupEngineered Polymer
