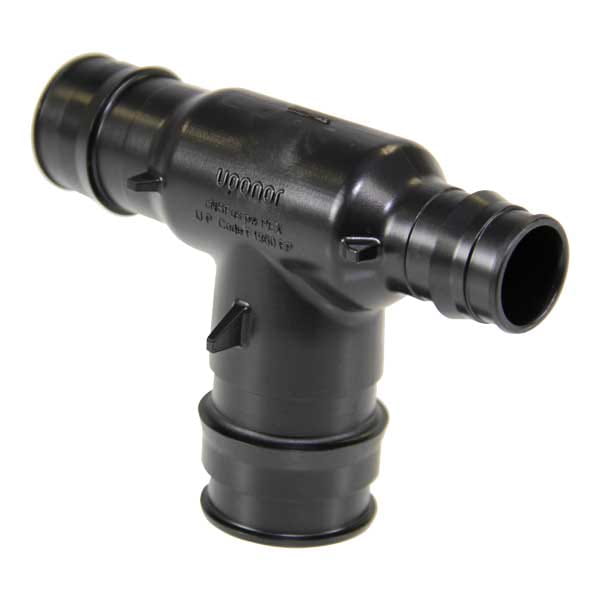

ProPEX EP Reducing Tee, 1" PEX x 3/4" PEX x 1 1/4" PEX

Part no.Q4751753

StatusActive

Download submittal

Find a distributor

Availability of specific products varies by distributor.

Part information and details

Dimensions

A [frac]	1 3/16 inch
A [inch]	1.191 inch
B [frac]	1 inch
B [inch]	1 inch
C [frac]	1 inch
C [inch]	1 inch
D [frac]	61/64 inch
D [inch]	0.955 inch
E [frac]	29/32 inch
E [inch]	0.9 inch
F [frac]	1 29/64 inch
F [inch]	1.455 inch
G [frac]	4 9/64 inch
G [inch]	4.146 inch
H [frac]	2 15/16 inch
H [inch]	2.945 inch
I [frac]	1 13/16 inch
I [inch]	1.82 inch
Equivalent length branch [ft]	16.7 ft
Equivalent length through [ft]	2.4 ft
Weight per UOM [lbs/UOM]	0.12 lbs/uom

Technical Data

Cv Branch	12
Cv Through	14.7
End Size 1 [inch\|mm]	1"
End Size 2 [inch\|mm]	3/4"
End Size 3 [inch\|mm]	1-1/4"
End Type 1	ProPEX
End Type 2	ProPEX
End Type 3	ProPEX
Operating Pressure 1 [PSI]	160 psi
Operating Pressure 2 [PSI]	100 psi
Operating Pressure 3 [PSI]	80 psi
Operating Temperature 1 [°F]	73 °F
Operating Temperature 2 [°F]	180 °F
Operating Temperature 3 [°F]	200 °F
Material group	Engineered Polymer

Dimensions

A [mm / String]	30.25 mm/string
B [mm / String]	25.40 mm/string
C [mm / String]	25.40 mm/string
D [mm / String]	24.26 mm/string
E [mm / String]	22.86 mm/string
F [mm / String]	36.96 mm/string
G [mm / String]	105.31 mm/string
H [mm / String]	74.80 mm/string
I [mm / String]	46.23 mm/string
Equivalent length branch [m]	5.09 m
Equivalent length through [m]	0.732 m
Weight per UOM [kg/UOM]	0.054 kg/uom

Technical Data

Cv Branch	12
Cv Through	14.7
End Type 1	ProPEX
End Type 2	ProPEX
End Type 3	ProPEX
Operating Pressure 1 [bar]	11 bar
Operating Pressure 2 [bar]	6.9 bar
Operating Pressure 3 [bar]	5.5 bar
Operating Temperature 1 [°C]	23 °C
Operating Temperature 2 [°C]	82 °C
Operating Temperature 3 [°C]	93 °C
Material group	Engineered Polymer
