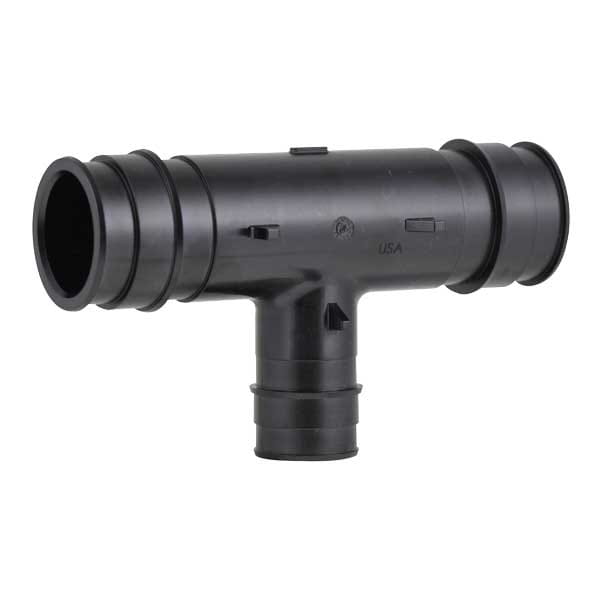

ProPEX EP Reducing Tee, 2 1/2" PEX x 2 1/2" PEX x 1" PEX

Part no.Q4752510
StatusActive

Part information and details

Codes

CodesUPC|IBC|IRC|IPC|NPC of Canada|UMC|NSPC|IMC

Dimensions

A [frac]2 53/64 inch
A [inch]2.83 inch
B [frac]1 1/4 inch
B [inch]1.25 inch
C [frac]1 1/4 inch
C [inch]1.25 inch
D [frac]2 53/64 inch
D [inch]2.83 inch
E [frac]1 5/16 inch
E [inch]1.31 inch
F [frac]1 3/16 inch
F [inch]1.191 inch
G [frac]8 5/32 inch
G [inch]8.16 inch
H [frac]3 51/64 inch
H [inch]3.791 inch
I [frac]3 19/32 inch
I [inch]3.6 inch
Equivalent length branch [ft]5 ft
Equivalent length through [ft]2.4 ft
Weight per UOM [lbs/UOM]0.69 lbs/uom

Listings

ListingsHUD MR 1269|IAPMO-ES|ICC-ES-PMG|cNSFus-pw|UL|U.P.Code|cQAIus P321

Standards

StandardsASTM E119|ASTM F877|ASTM F1960|ASTM E814|CSA B137.5|NSF-61|ASTM E84|NSF-14

Technical Data

Cv Branch17.5
Cv Through202
End Size 1 [inch|mm]2-1/2"
End Size 2 [inch|mm]2-1/2"
End Size 3 [inch|mm]1"
End Type 1ProPEX
End Type 2ProPEX
End Type 3ProPEX
Operating Pressure 1 [PSI]160 psi
Operating Pressure 2 [PSI]100 psi
Operating Pressure 3 [PSI]80 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]180 °f
Operating Temperature 3 [°F]200 °f
Material groupEngineered Polymer
