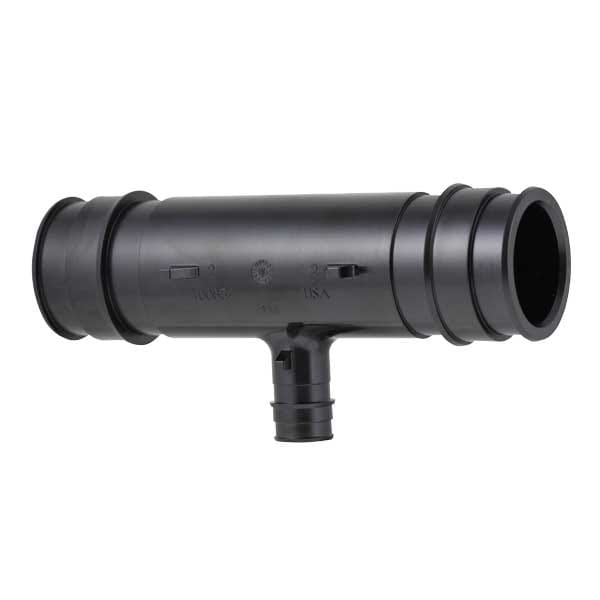

ProPEX EP Reducing Tee, 2" PEX x 2" PEX x 3/4" PEX

Part no.Q4752275
StatusActive

Part information and details

Codes

CodesUPC|IBC|IRC|IPC|NPC of Canada|UMC|NSPC|IMC

Dimensions

A [frac]2 5/32 inch
A [inch]2.157 inch
B [frac]61/64 inch
B [inch]0.95 inch
C [frac]61/64 inch
C [inch]0.95 inch
D [frac]2 5/32 inch
D [inch]2.157 inch
E [frac]1 3/64 inch
E [inch]1.05 inch
F [frac]61/64 inch
F [inch]0.955 inch
G [frac]6 7/32 inch
G [inch]6.214 inch
H [frac]3 3/64 inch
H [inch]3.045 inch
I [frac]2 13/16 inch
I [inch]2.82 inch
Equivalent length branch [ft]6.8 ft
Equivalent length through [ft]2.7 ft
Weight per UOM [lbs/UOM]0.34 lbs/uom

Listings

ListingsHUD MR 1269|IAPMO-ES|ICC-ES-PMG|cNSFus-pw|UL|U.P.Code|cQAIus P321

Standards

StandardsASTM E119|ASTM F877|ASTM F1960|ASTM E814|CSA B137.5|NSF-61|ASTM E84|NSF-14

Technical Data

Cv Branch8.2
Cv Through115
End Size 1 [inch|mm]2"
End Size 2 [inch|mm]2"
End Size 3 [inch|mm]3/4"
End Type 1ProPEX
End Type 2ProPEX
End Type 3ProPEX
Operating Pressure 1 [PSI]160 psi
Operating Pressure 2 [PSI]100 psi
Operating Pressure 3 [PSI]80 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]180 °f
Operating Temperature 3 [°F]200 °f
Material groupEngineered Polymer
