q4752213

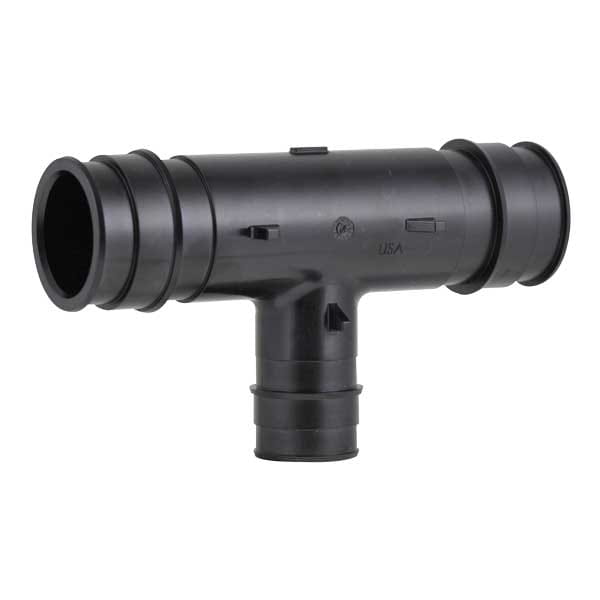

ProPEX EP Reducing Tee, 2" x 2" x 1 1/4

Part no.Q4752213
StatusActive
Download submittal

Find a distributor

Availability of specific products varies by distributor.

Part information and details

Codes

CodesUPC|IBC|IRC|IPC|NPC of Canada|UMC|NSPC|IMC

Dimensions

A [frac]2 5/32 inch
A [inch]2.157 inch
B [frac]1 5/16 inch
B [inch]1.32 inch
C [frac]1 5/16 inch
C [inch]1.32 inch
D [frac]2 5/32 inch
D [inch]2.157 inch
E [frac]1 5/16 inch
E [inch]1.305 inch
F [frac]1 7/16 inch
F [inch]1.445 inch
G [frac]6 61/64 inch
G [inch]6.954 inch
H [frac]3 51/64 inch
H [inch]3.79 inch
I [frac]2 5/8 inch
I [inch]2.62 inch
Equivalent length branch [ft]8.8 ft
Equivalent length through [ft]3.1 ft
Weight per UOM [lbs/UOM]0.37 lbs/uom

Listings

ListingsIAPMO-ES|HUD MR 1269|ICC-ES-PMG|cNSFus-pw|UL|U.P.Code|cQAIus P321

Standards

StandardsASTM E119|ASTM F877|ASTM F1960|ASTM E814|CSA B137.5|NSF-61|ASTM E84|NSF-14

Technical Data

Cv Branch23.6
Cv Through107
End Size 1 [inch|mm]2"
End Size 2 [inch|mm]2"
End Size 3 [inch|mm]1-1/4"
End Type 1ProPEX
End Type 2ProPEX
End Type 3ProPEX
Operating Pressure 1 [PSI]160 psi
Operating Pressure 2 [PSI]100 psi
Operating Pressure 3 [PSI]80 psi
Operating Temperature 1 [°F]73 °F
Operating Temperature 2 [°F]180 °F
Operating Temperature 3 [°F]200 °F
Material groupEngineered Polymer
