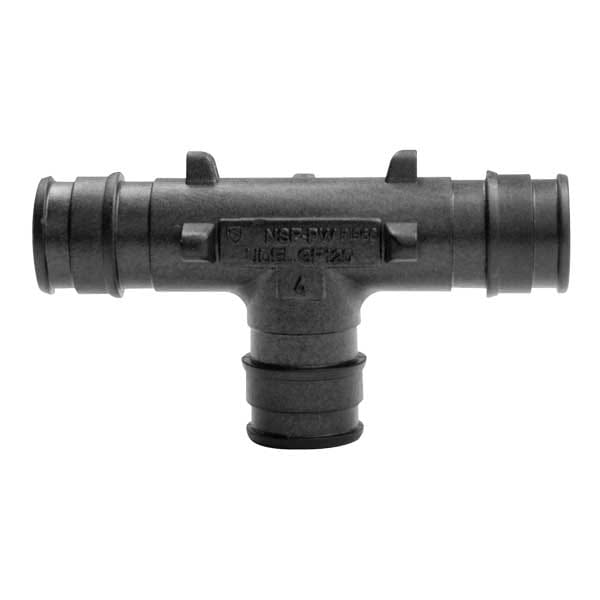

ProPEX EP Tee, 1" PEX x 1" PEX x 1" PEX

Part no.Q4751010
StatusActive

Part information and details

Codes

CodesIMC|UPC|IBC|IRC|IPC|NPC of Canada|UMC|NSPC

Dimensions

A [frac]1 3/16 inch
A [inch]1.191 inch
B [frac]59/64 inch
B [inch]0.925 inch
C [frac]59/64 inch
C [inch]0.925 inch
D [frac]1 3/16 inch
D [inch]1.191 inch
E [frac]21/32 inch
E [inch]0.65 inch
F [frac]1 3/16 inch
F [inch]1.191 inch
G [frac]4 15/64 inch
G [inch]4.232 inch
H [frac]2 7/16 inch
H [inch]2.431 inch
I [frac]1 31/64 inch
I [inch]1.48 inch
Equivalent length branch [ft]12.7 ft
Equivalent length through [ft]1.3 ft
Weight per UOM [lbs/UOM]0.07 lbs/uom

Listings

ListingsIAPMO-ES|ICC-ES-PMG|UL|U.P.Code|cQAIus P321|HUD MR 1269|cNSFus-pw-fs

Standards

StandardsASTM F1960|UL 1821|ASTM E119/UL 263|ASTM E84|ASTM E814/ULC S115|ASTM F877|CSA B137.5|ULC S102.2|NSF-61|ULC S101|NSF-14

Technical Data

Cv Branch11.3
Cv Through30.5
End Size 1 [inch|mm]1"
End Size 2 [inch|mm]1"
End Size 3 [inch|mm]1"
End Type 1ProPEX
End Type 2ProPEX
End Type 3ProPEX
Operating Pressure 1 [PSI]160 psi
Operating Pressure 2 [PSI]100 psi
Operating Pressure 3 [PSI]80 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]180 °f
Operating Temperature 3 [°F]200 °f
Material groupEngineered Polymer
