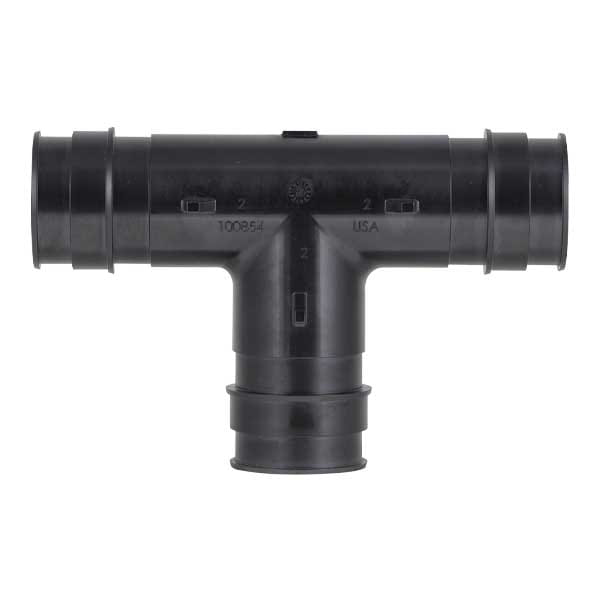

ProPEX EP Tee, 3" PEX x 3" PEX x 3" PEX

Part no.Q4753000
StatusActive

Part information and details

Codes

CodesIMC|UPC|IBC|IRC|IPC|NPC of Canada|UMC|NSPC

Dimensions

A [frac]3 3/8 inch
A [inch]3.38 inch
B [frac]2 3/4 inch
B [inch]2.75 inch
C [frac]2 3/4 inch
C [inch]2.75 inch
D [frac]3 3/8 inch
D [inch]3.38 inch
E [frac]1 29/64 inch
E [inch]1.45 inch
F [frac]3 3/8 inch
F [inch]3.38 inch
G [frac]12 17/64 inch
G [inch]12.26 inch
H [frac]6 3/8 inch
H [inch]6.367 inch
I [frac]4 13/64 inch
I [inch]4.2 inch
Equivalent length branch [ft]23.9 ft
Equivalent length through [ft]2.8 ft
Weight per UOM [lbs/UOM]1.86 lbs/uom

Listings

ListingsIAPMO-ES|ICC-ES-PMG|cNSFus-pw|UL|U.P.Code|cQAIus P321|HUD MR 1269

Standards

StandardsASTM F1960|ASTM E119/UL 263|ASTM E84|ASTM E814/ULC S115|ASTM F877|CSA B137.5|ULC S102.2|NSF-61|ULC S101|NSF-14

Technical Data

Cv Branch122.8
Cv Through286.6
End Size 1 [inch|mm]3"
End Size 2 [inch|mm]3"
End Size 3 [inch|mm]3"
End Type 1ProPEX
End Type 2ProPEX
End Type 3ProPEX
Operating Pressure 1 [PSI]160 psi
Operating Pressure 2 [PSI]100 psi
Operating Pressure 3 [PSI]80 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]180 °f
Operating Temperature 3 [°F]200 °f
Material groupEngineered Polymer
