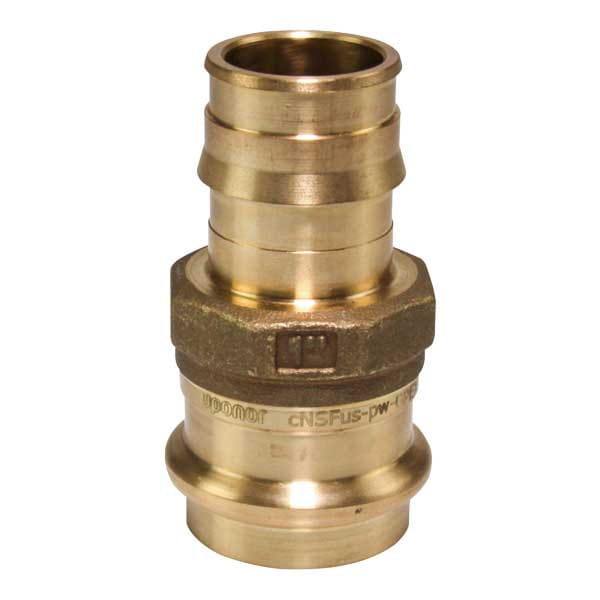

ProPEX LF Brass Copper Press Adapter, 1" PEX x 1" Copper

Part no.LFP4511010
StatusActive

Part information and details

Codes

CodesUPC|IBC|IRC|IPC|NPC of Canada|UMC|NSPC|IMC

Dimensions

A [frac]2 43/64 inch
A [inch]2.677 inch
B [frac]5/16 inch
B [inch]0.315 inch
C [frac]1 3/16 inch
C [inch]1.181 inch
D [frac]1 9/64 inch
D [inch]1.134 inch
E [frac]1 33/64 inch
E [inch]1.516 inch
Equivalent length through [ft]2.4 ft
Weight per UOM [lbs/UOM]0.28 lbs/uom

Listings

ListingsIAPMO-ES|cNSFus-pw-G|U.P.Code|ICC-PMG-1412

Standards

StandardsASME B16.51|IAPMO PS 117|NSF-372|ASTM F877|ICC-ES LC1002|ASTM F1960|CSA B137.5|NSF-61|NSF-14

Technical Data

Cv22.1
End Size 1 [inch|mm]1"
End Size 2 [inch|mm]1"
End Type 1ProPEX
End Type 2Copper Press
Material GasketEPDM
Operating Pressure 1 [PSI]160 psi
Operating Pressure 2 [PSI]100 psi
Operating Pressure 3 [PSI]80 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]180 °f
Operating Temperature 3 [°F]200 °f
Prop 65 label required?Yes
Submittal Subcomponent MaterialUNS C27453
