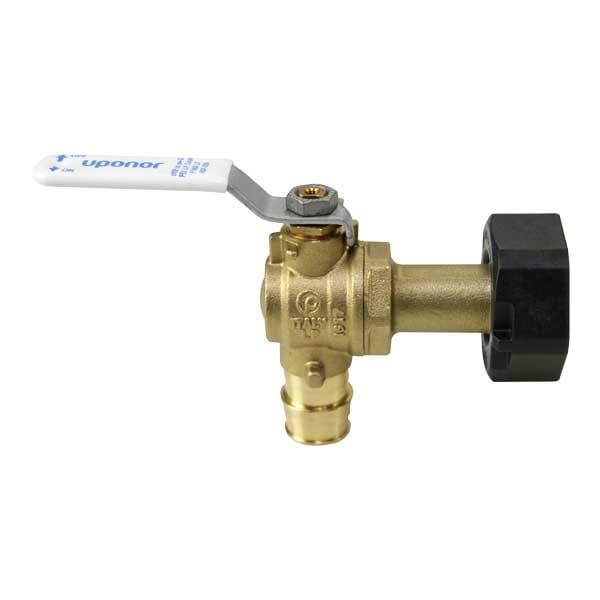

ProPEX LF Brass Elbow Water Meter Valve, 3/4" PEX x 1" NPSM

Part no.WS4820751
StatusActive

Part information and details

Codes

CodesUPC|IBC|IRC|IPC|NPC of Canada|UMC|NSPC|IMC

Dimensions

C [frac]1 35/64 inch
D [frac]2 63/64 inch
D [inch]2.992 inch
E [frac]25/32 inch
E [inch]0.781 inch
F [frac]1 29/32 inch
F [inch]1.9 inch
G [frac]1 19/64 inch
G [inch]1.299 inch
Weight per UOM [lbs/UOM]0.76 lbs/uom
K [inch]0.65 inch
K [frac]21/32 inch
J [inch]5.735 inch
J [frac]5 47/64 inch
I [inch]3.277 inch
I [frac]3 9/32 inch
H [inch]0.65 inch
H [frac]21/32 inch
C [inch]1.551 inch
B [inch]2.249 inch
B [frac]2 1/4 inch
A [inch]0.945 inch
A [frac]15/16 inch

Listings

ListingsHUD MR 1269|cNSFus-pw-G|U.P.Code

Standards

StandardsNSF-372|ASTM F877|NSF-359|ASTM F1960|CSA B137.5|NSF-61|NSF-14

Technical Data

Cv4.9
End Size 1 [inch|mm]3/4"
End Size 2 [inch|mm]1"
Material groupLF Brass
Operating Temperature 2 [°F]180 °f
Operating Temperature 1 [°F]73 °f
Operating Pressure 3 [PSI]80 psi
Operating Pressure 2 [PSI]100 psi
Operating Pressure 1 [PSI]160 psi
End Type 2NPSM
End Type 1ProPEX
Submittal Subcomponent MaterialValve: C27453 lead-free (LF) brass per ASTM B283/B283M Metal nut: UNS CW614 per ASTM B16/B16M EP nut: Polypropylene GF30 black Gasket: EPDM
Prop 65 label required?Yes
Operating temperature min. [°F]-29 °f
Operating Temperature 3 [°F]200 °f
Material GasketEPDM
