lf4577510

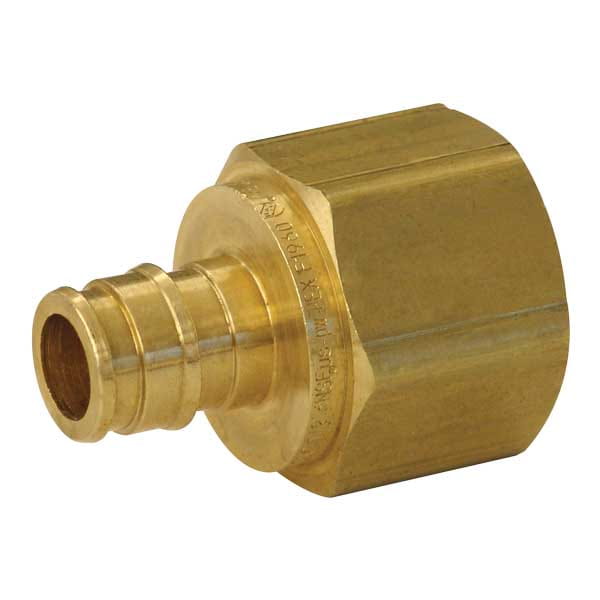

ProPEX LF Brass Female Threaded Adapter, 3/4" PEX x 1" NPT

Part no.LF4577510
StatusActive

Part information and details

Codes

CodesUPC|IBC|IRC|IPC|NPC of Canada|UMC|NSPC|IMC

Dimensions

A [frac]2 13/64 inch
A [inch]2.205 inch
B [frac]1 17/64 inch
B [inch]1.26 inch
C [frac]1 47/64 inch
C [inch]1.732 inch
D [frac]19/32 inch
D [inch]0.599 inch
E [frac]15/16 inch
E [inch]0.945 inch
F [frac]1 1/2 inch
F [inch]1.5 inch
Weight per UOM [lbs/UOM]0.4 lbs/uom

Listings

ListingsIAPMO-ES|ICC-ES-PMG|cNSFus-pw-G|U.P.Code

Standards

StandardsNSF-372|ASTM F877|ASTM F1960|CSA B137.5|NSF-61|NSF-14

Technical Data

End Size 1 [inch|mm]3/4"
End Size 2 [inch|mm]1"
End Type 1ProPEX
End Type 2FNPT
Operating Pressure 1 [PSI]160 psi
Operating Pressure 2 [PSI]100 psi
Operating Pressure 3 [PSI]80 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]180 °f
Operating Temperature 3 [°F]200 °f
Material groupBrass
Prop 65 label required?Yes
Submittal Subcomponent MaterialC69300 Brass
