Fire; lf7711050

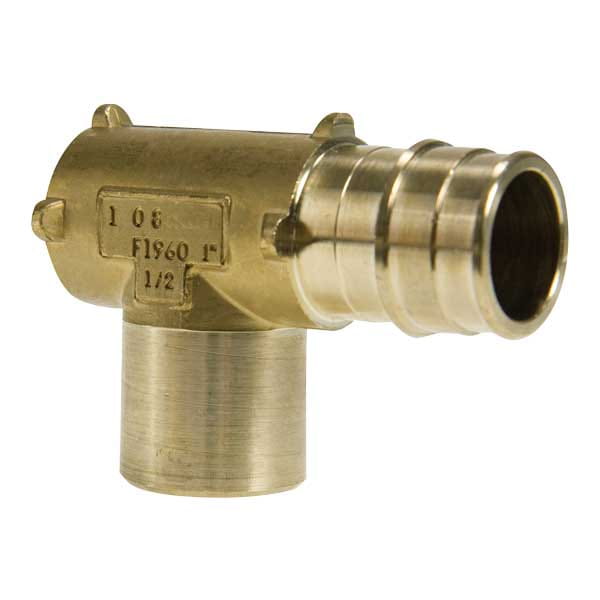

ProPEX LF Brass Fire Sprinkler Adapter Elbow, 1" PEX x 1/2" FNPT

Part no.LF7711050
StatusActive

Part information and details

Codes

CodesUPC|IRC|IPC|NPC of Canada|NSPC|IMC

Dimensions

A [frac]1 3/16 inch
A [inch]1.181 inch
B [frac]55/64 inch
B [inch]0.865 inch
C [frac]1 7/64 inch
C [inch]1.115 inch
D [frac]2 29/32 inch
D [inch]2.911 inch
E [frac]2 13/64 inch
E [inch]2.209 inch
F [frac]1 29/64 inch
F [inch]1.46 inch
G [frac]47/64 inch
G [inch]0.73 inch
Weight per UOM [lbs/UOM]0.59 lbs/uom

Listings

ListingsIAPMO-ES|ICC-ES-PMG|cNSFus-pw-G|U.P.Code

Standards

StandardsNSF-372|ASTM F877|NSF-359|ASTM F1960|CSA B137.5|UL 1821|NSF-61|NSF-14

Technical Data

End Size 1 [inch|mm]1"
End Size 2 [inch|mm]1/2"
End Type 1ProPEX
End Type 2FNPT
Operating Pressure 1 [PSI]160 psi
Operating Pressure 2 [PSI]100 psi
Operating Pressure 3 [PSI]80 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]180 °f
Operating Temperature 3 [°F]200 °f
Material groupLF Brass
Prop 65 label required?Yes
Submittal Subcomponent MaterialC69300 BRASS
