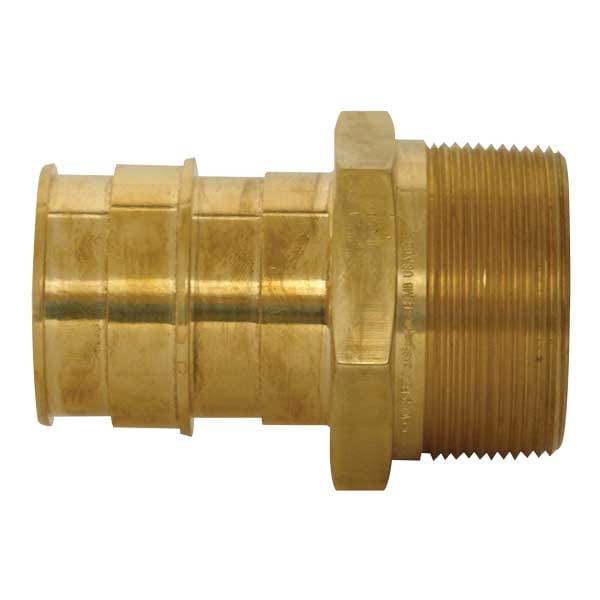

ProPEX LF Brass Male Threaded Adapter, 2" PEX x 2" NPT

Part no.LF4522020
StatusActive

Part information and details

Codes

CodesUPC|IBC|IRC|IPC|NPC of Canada|UMC|NSPC|IMC

Dimensions

A [frac]3 35/64 inch
A [inch]3.543 inch
B [frac]1 25/64 inch
B [inch]1.396 inch
C [frac]2 19/32 inch
C [inch]2.6 inch
D [frac]41/64 inch
D [inch]0.639 inch
E [frac]2 9/64 inch
E [inch]2.147 inch
F [frac]2 3/8 inch
F [inch]2.375 inch
Equivalent length through [ft]5.61 ft
Weight per UOM [lbs/UOM]1.45 lbs/uom

Listings

ListingsIAPMO-ES|ICC-ES-PMG|cNSFus-pw-G|U.P.Code

Standards

StandardsNSF-372|ASTM F877|ASTM F1960|CSA B137.5|NSF-61|NSF-14

Technical Data

Cv78.6
End Size 1 [inch|mm]2"
End Size 2 [inch|mm]2"
End Type 1ProPEX
End Type 2MNPT
Operating Pressure 1 [PSI]160 psi
Operating Pressure 2 [PSI]100 psi
Operating Pressure 3 [PSI]80 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]180 °f
Operating Temperature 3 [°F]200 °f
Prop 65 label required?Yes
Submittal Subcomponent MaterialC69300 Brass C27453 Brass
