lf4512020

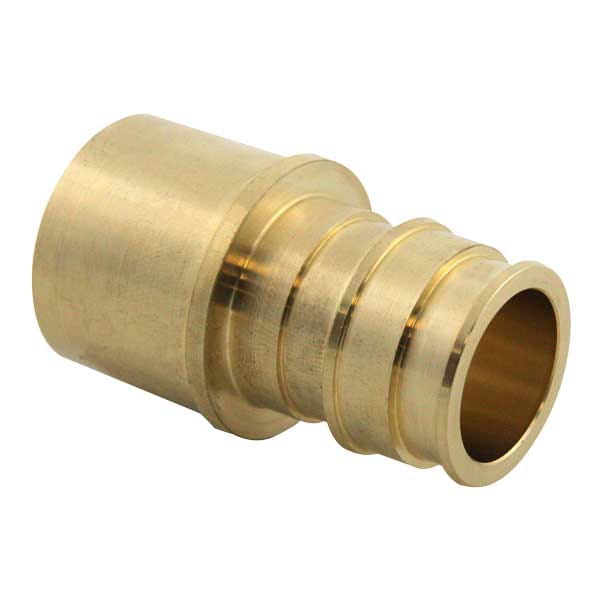

ProPEX LF Brass Sweat Adapter, 2" PEX x 2" Copper

Part no.LF4512020
StatusActive

Part information and details

Codes

CodesUPC|IBC|IRC|IPC|NPC of Canada|UMC|NSPC|IMC

Dimensions

A [frac]3 47/64 inch
A [inch]3.73 inch
B [frac]1/4 inch
B [inch]0.243 inch
C [frac]1 11/32 inch
C [inch]1.34 inch
D [frac]2 1/8 inch
D [inch]2.13 inch
E [frac]2 19/32 inch
E [inch]2.6 inch
Equivalent length through [ft]5.3 ft
Weight per UOM [lbs/UOM]1 lbs/uom

Listings

ListingsIAPMO-ES|ICC-ES-PMG|cNSFus-pw-G|U.P.Code

Standards

StandardsNSF-372|ASTM F877|ASTM F1960|CSA B137.5|NSF-61|NSF-14

Technical Data

Cv83.6
End Size 1 [inch|mm]2"
End Size 2 [inch|mm]2"
End Type 1ProPEX
End Type 2Sweat
Operating Pressure 1 [PSI]160 psi
Operating Pressure 2 [PSI]100 psi
Operating Pressure 3 [PSI]80 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]180 °f
Operating Temperature 3 [°F]200 °f
Prop 65 label required?Yes
Submittal Subcomponent MaterialC69300 brass
