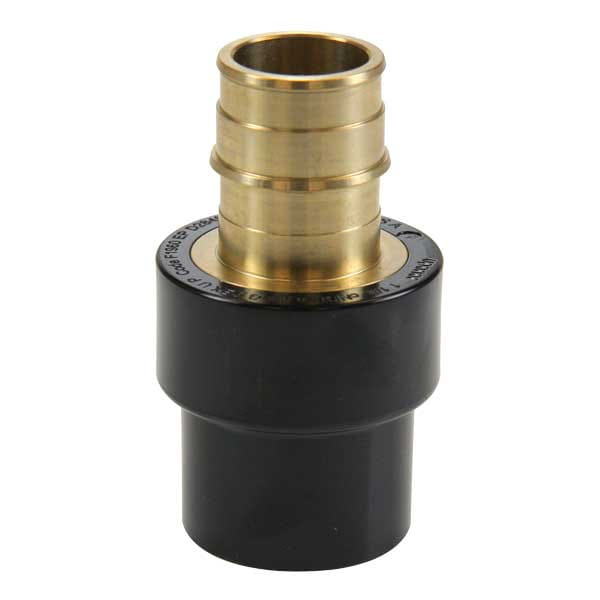

ProPEX LF Brass x CPVC Socket Adapter, 1 1/2" PEX x 1 1/2" CPVC (CTS)

Part no.CP4511515
StatusActive

Part information and details

Codes

CodesUPC|IBC|IRC|IPC|NPC of Canada|UMC|NSPC|IMC

Dimensions

A [frac]4 3/16 inch
A [inch]4.184 inch
B [frac]1 5/32 inch
B [inch]1.16 inch
C [frac]1 5/16 inch
C [inch]1.32 inch
D [frac]1 41/64 inch
D [inch]1.641 inch
E [frac]1 13/64 inch
E [inch]1.2 inch
F [frac]2 3/8 inch
F [inch]2.381 inch
Weight per UOM [lbs/UOM]0.77 lbs/uom

Listings

ListingsHUD MR 1269|IAPMO-ES|ICC-ES-PMG|cNSFus-pw-G|U.P.Code|cQAIus P321

Standards

StandardsNSF-372|ASTM F877|ASTM F1960|CSA B137.5|ASTM D2846|NSF-61|NSF-14

Technical Data

End Size 1 [inch|mm]1-1/2"
End Size 2 [inch|mm]1-1/2"
End Type 1ProPEX
End Type 2CPVC
Operating Pressure 1 [PSI]160 psi
Operating Pressure 2 [PSI]100 psi
Operating Pressure 3 [PSI]80 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]180 °f
Operating Temperature 3 [°F]200 °f
Prop 65 label required?Yes
Submittal Subcomponent MaterialC69300 Brass; ProTherm 4529 CPVC
