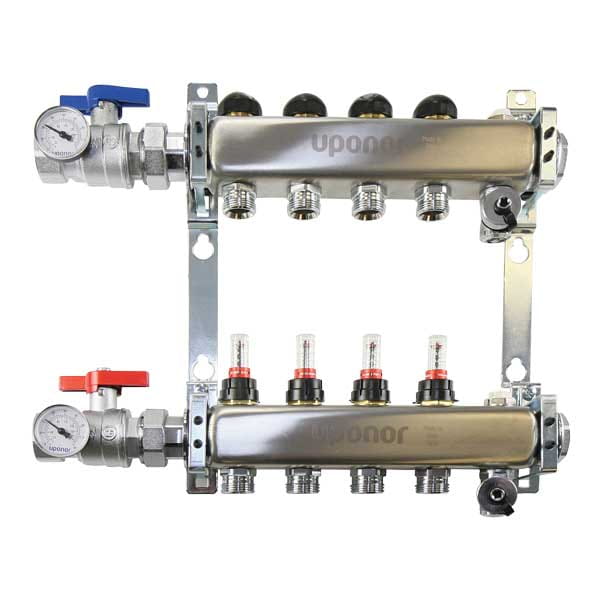

Stainless-steel Manifold Assembly, 1 1/4" with flow meter, B&I, ball valve, 5 loops

Part no.A2720502

Find a distributor

Availability of specific products varies by distributor.

Part information and details


A [frac]16 27/32 inch
A [inch]16.839 inch
B [frac]14 29/64 inch
B [inch]14.46 inch
C [frac]3 35/64 inch
C [inch]3.541 inch
D [frac]1 31/32 inch
D [inch]1.969 inch
E [frac]5 27/64 inch
E [inch]5.425 inch
F [frac]1 3/4 inch
F [inch]1.75 inch
G [frac]2 1/4 inch
G [inch]2.25 inch
H [frac]12 1/8 inch
H [inch]12.131 inch
I [frac] inch
I [inch] inch
J [frac] inch
J [inch] inch
K [frac] inch
K [inch] inch
L [frac] inch
L [inch] inch
M [frac] inch
M [inch] inch
N [frac] inch
N [inch] inch
Manifold Body Size (I.D.) [inch]1.25 inch
Weight per UOM [lbs/UOM]11.92 lbs/uom

Technical Data

Cv Branch1.1
End Size 1 [inch|mm]1-1/4"
End Size 2 [inch|mm]3/4"
End Type 1ISO 228-G
End Type 2ISO 228-G
Flow Rate Max. [gpm]21 gpm
Operating Pressure 1 [PSI]145 psi
Operating Pressure 2 [PSI]87 psi
Operating Pressure 3 [PSI]44 psi
Operating Temperature 1 [°F]68 °F
Operating Temperature 2 [°F]158 °F
Operating Temperature 3 [°F]194 °F
Material manifoldStainless steel AISI304
Material groupStainless Steel
Prop 65 label required?Yes
Submittal Subcomponent MaterialManifold Components: Brass CW614N-UNI EN12164, CW617N-UNI EN12165
