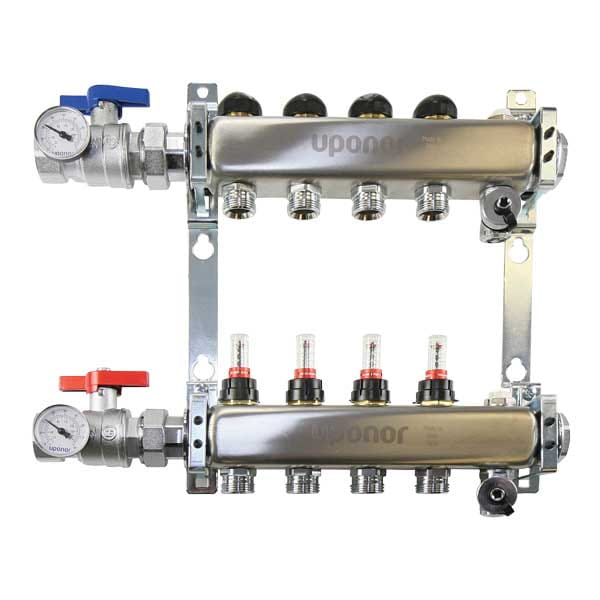

Stainless-steel Manifold Assembly, 1" with flow meter, B&I, ball valve, 5 loops

Part no.A2700502

Find a distributor

Availability of specific products varies by distributor.

Part information and details


A [frac]17 1/16 inch
A [inch]17.065 inch
B [frac]14 1/8 inch
B [inch]14.119 inch
C [frac]3 27/32 inch
C [inch]3.842 inch
D [frac]1 31/32 inch
D [inch]1.969 inch
E [frac]5 31/64 inch
E [inch]5.488 inch
F [frac]1 35/64 inch
F [inch]1.55 inch
G [frac]2 3/64 inch
G [inch]2.05 inch
H [frac]12 13/64 inch
H [inch]12.198 inch
Manifold Body Size (I.D.) [inch]1 inch
Weight per UOM [lbs/UOM]12.2 lbs/uom

Technical Data

Cv Branch1.1
End Size 1 [inch|mm]1-1/4"
End Size 2 [inch|mm]3/4"
End Type 1ISO 228-G
End Type 2ISO 228-G
Flow Rate Max. [gpm]14 gpm
Operating Pressure 1 [PSI]145 psi
Operating Pressure 2 [PSI]87 psi
Operating Pressure 3 [PSI]44 psi
Operating Temperature 1 [°F]68 °F
Operating Temperature 2 [°F]158 °F
Operating Temperature 3 [°F]194 °F
Material manifoldStainless steel AISI304
Material groupStainless Steel
Prop 65 label required?Yes
Submittal Subcomponent MaterialManifold Components: Brass CW614N-UNI EN12164, CW617N-UNI EN12165
