a2640027

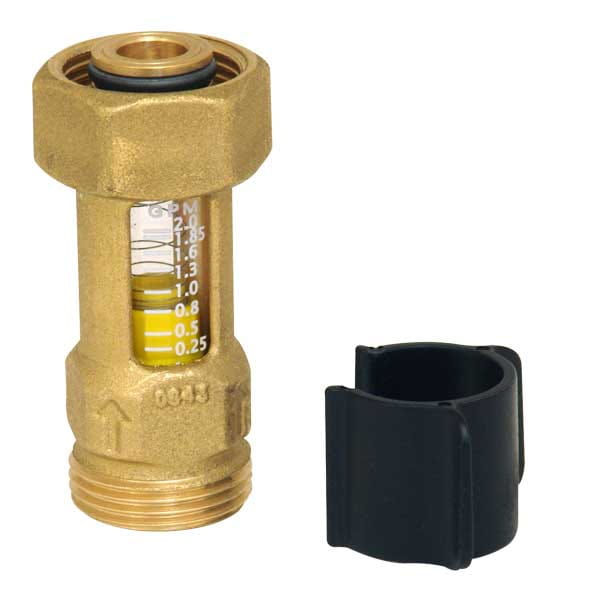

TruFLOW Visual Flow Meter, 0.25 to 2.0 gpm

Part no.A2640027
StatusActive

Part information and details

Dimensions

Weight per UOM [lbs/UOM]0.28 lbs/uom

Standards

StandardsASTM F877|R20: ISO 228-G ¾"

Technical Data

Cv1.51
End Size 1 [inch|mm]3/4"
End Size 2 [inch|mm]3/4"
End Type 1ISO 228-G
End Type 2ISO 228-G
Operating Pressure 1 [PSI]160 psi
Operating Pressure 2 [PSI]100 psi
Operating Pressure 3 [PSI]80 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]180 °f
Operating Temperature 3 [°F]200 °f
Material groupUNS C3850 Brass/Pyrex® Glass
Prop 65 label required?Yes
