Fluvia pump supply groups
Pre-assembled Fluvia pump supply groups Uponor Fluvia Pump Groups are complete preassembled and full proved units to be used as part of the supply system which supports underfloor heating installations in residential and commercial buildings. Fluvia Move Pump Groups include all components necessary for connection in to the pipe network.
Fluvia pump group specifications
Application area:
For control of underfloor heating systems in small zones
Max. 90° primary
Max. pressure: 6 bar at 60°C
Specification:
Integrated pump: Q: 0,1 - 0,4 m³/h, H: 0,2 - 1,1 m, Phyd< 1W
Bracket for left- or right installation
Air bleed screw
Secondary circuit temp. range 20-50°C
Balancing valve
Secondary loop 3/4" eurocone
Primary valves with clamp connection for CU-Pipe 15mm
Application area:
For weather compensated supply water temperature control
Max. temperature 90°C primary
Max. secondary pressure: 6 bar at 60°C
Specification:
Pump group pre-mounted with supply temperature controller Uponor Smatrix Move
Outdoor temperature sensor (for installation on building site)
Water temperature sensor for supply temperature
3-way-mixing valve
Motor drive
Proportional pressure control
Upgrade to heating/cooling possible with Uponor Smatrix Thermostat T-168 and Uponor Smatrix Antenna
Uponor Fluvia Move /Move PLUS
Select Uponor Fluvia /Fluvia Move PLUS and get details in the product catalogue CGP 15 Fluvia Move Pump group with outdoor compensated flow temperature specially designed for cooling installations Installation e.g. in boiler room Push 23 Fluvia Move Pump group for limited maximum flow temperature Installation on manifold PPG 30 Fluvia Move Pump group for limited maximum flow temperature Equipped with Uponor Smatrix Move control unit for supply water control EGP 6 Fluvia Move Pump group with heat exchanger for free cooling Equipped with Uponor Smatrix Move control unit for supply water control incl. outdoor sensor included MPG 10 Fluvia Move Pump group with outdoor compensated flow temperature Installation on manifold
Discover more on Fluvia Move and Fluvia Move PLUS in our brochures

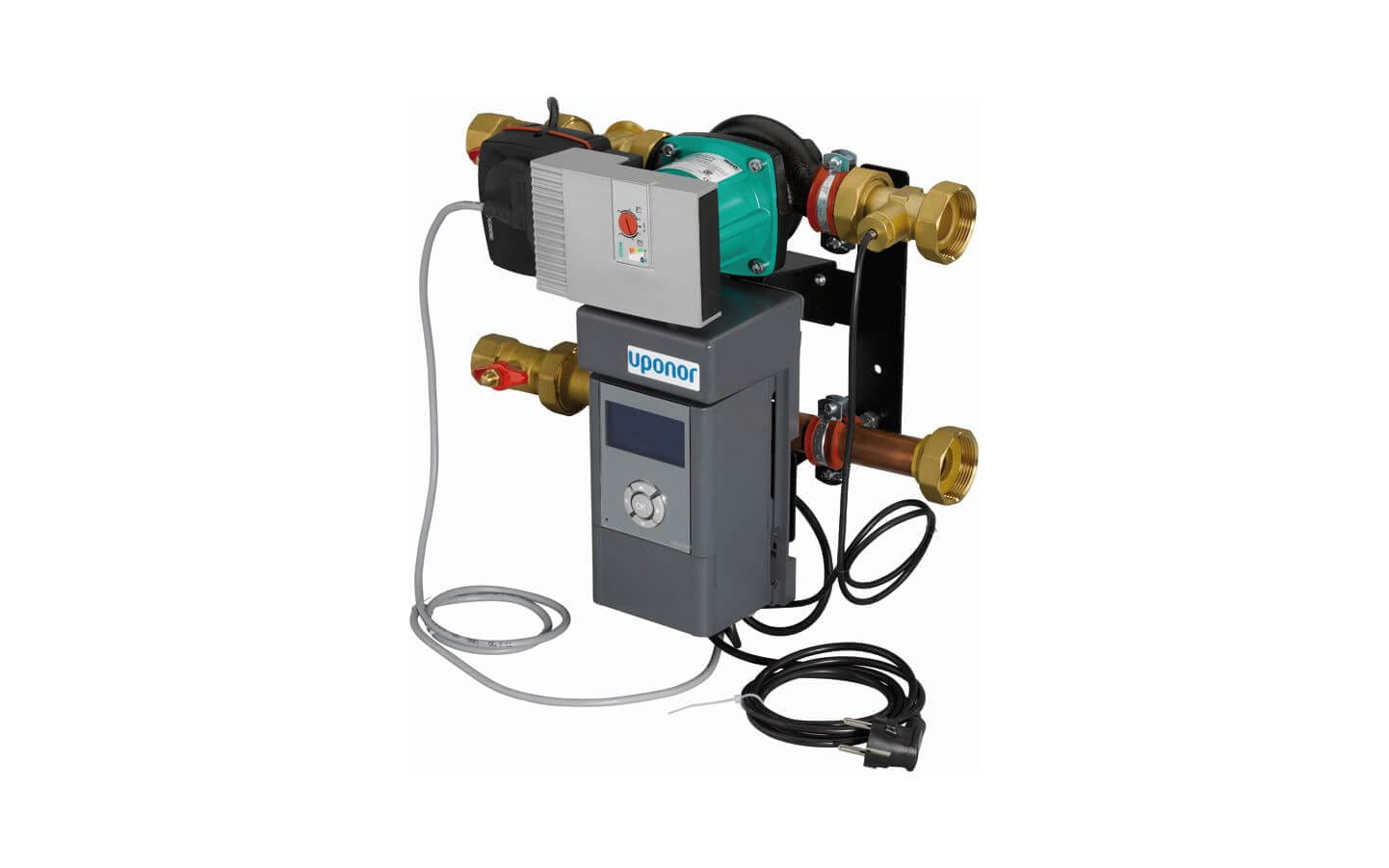

Uponor Fluvia Move Pumpgroup PPG

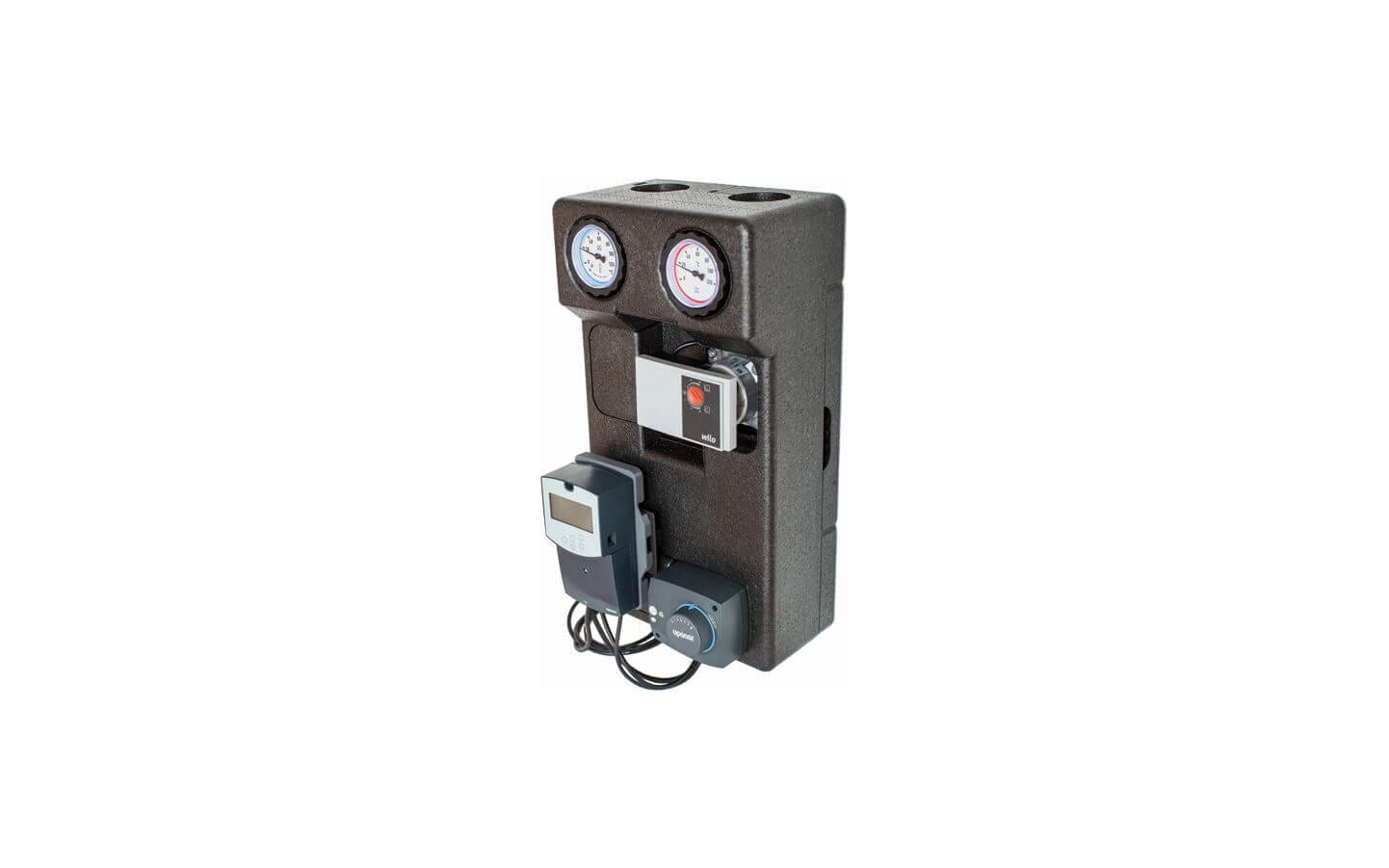

Uponor Fluvia Movie Pumpgroup CPG
Uponor FLUVIA Move Pumpgroup PUSH-23-A-AC
Uponor Fluvia Move Pumpgroup MPG
Select Uponor Fluvia T and get details in the product catalogue TPG 30 Fluvia T With thermostat for constant supply water temperature control Uponor Fluvia T Push 12 Pump group for single rooms or small areas up to 40 m2 KRS 6 Fluvia T Pump group for constant supply water control including temperature limit switch Installation on manifold
Discover more on Fluvia T pump groups in our brochures Uponor Fluvia T pumpgroup Push 12 WL G Installation and operation manual
Uponor Fluvia T pumpgroup TPG

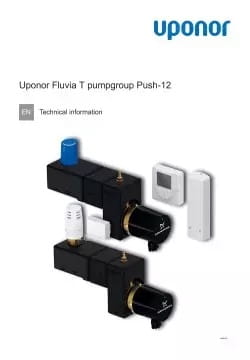

Uponor Fluvia T pumpgroup Push-12
Uponor Fluvia T pumpgroup Push-12 CH-G

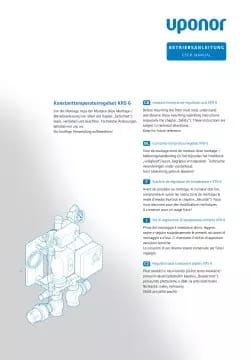

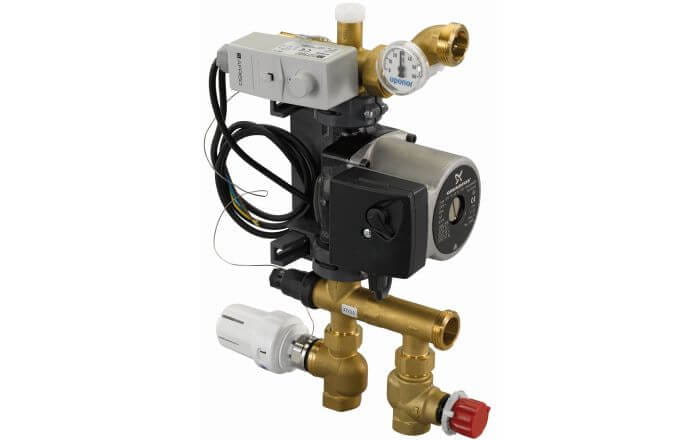

Uponor Fluvia T pumpgroup KRS 6 Fluvia T pumpgroup Push 12 TH G Installationa and operation manual
Full overview on Uponor controls portfolio Uponor Smatrix Pulse smart controls For residential buildings New room temperature control with full smart home connectivity Individual comfort zone within seconds Uponor Smatrix PRO Room and zone control for commercial building types and outdoor areas Smart monitoring technology and remote control of the whole system Uponor Smatrix Style thermostats Slim room thermostat with operative temperature sensor Energy savings up to 20% due to innovative autobalancing technology Uponor Base For residential buildings Wired 230V room controls Maximum ease of control with minimum of effort Software and App Software updates and documents for Smatrix products Smatix App: remote control for underfloor heating and cooling systems
