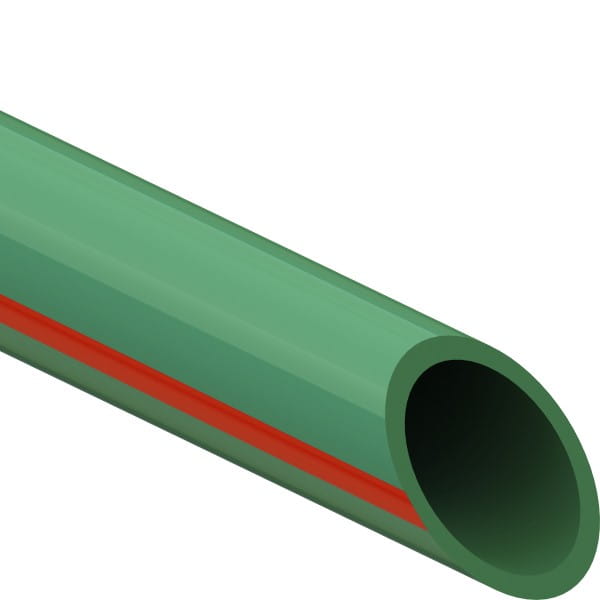

1 1/4" Uponor PP-RCT Hot Potable Pipe, SDR 9 with Fiber, 13-ft. straight length
Part no.PR9221313
StatusActive
Find a distributor
Availability of specific products varies by distributor.
Part information and details
Codes
| Codes | UPC|IRC|IPC|NPC of Canada|UMC|CMC|CPC|IMC |
|---|
Dimensions
| Inner diameter pipe [inch] | 1.22 inch |
|---|---|
| Outer diameter pipe [inch] | 1.575 inch |
| Weight per UOM [lbs/UOM] | 4.42 lbs/uom |
Listings
| Listings | ICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775|NSF-51 |
|---|
Standards
| Standards | NSF-61|ASTM E84|NSF-14|ASTM F2389|CSA B137.11 |
|---|
Technical Data
| Operating Pressure 1 [PSI] | 270 psi |
|---|---|
| Operating Pressure 2 [PSI] | 176 psi |
| Operating Pressure 3 [PSI] | 100 psi |
| Operating Temperature 1 [°F] | 73 °F |
| Operating Temperature 2 [°F] | 120 °F |
| Operating Temperature 3 [°F] | 180 °F |
| Linear expansion rate [inch/10°F/100ft] | 0.2 inch/10°f/100ft |
| Material group | PP-RCT |
| Pipe density [lb/ft³] | 0.0565 lb/ft³ |
| R value | 0.12 |
| SDR-class | 9 |
| Material Service Pipe | PP-RCT + GF |
| Thermal conductivity pipe [BTUin/ft²hrF°] | 1.67 btuin/ft²hrf° |
| Prop 65 label required? | No |
