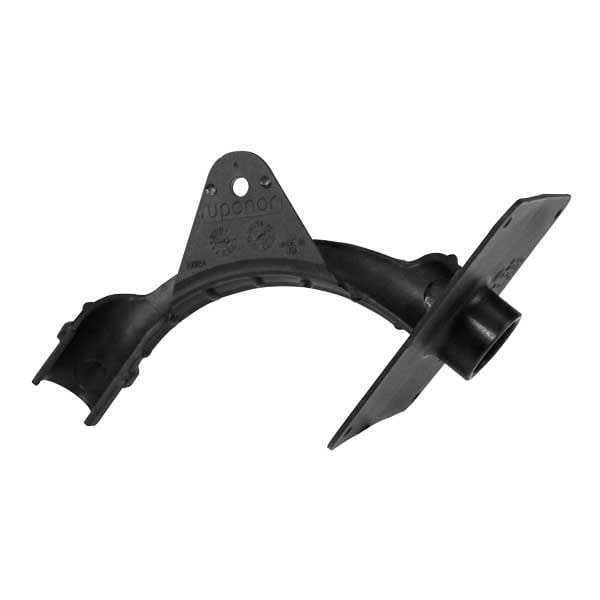

1/2" Plastic Drop Ear Bend Support
Part no.F5200500
StatusActive
Find a distributor
Availability of specific products varies by distributor.
Part information and details
Dimensions
| A [frac] | 3 13/16 inch |
|---|---|
| A [inch] | 3.815 inch |
| B [frac] | 3 57/64 inch |
| B [inch] | 3.895 inch |
| C [frac] | 57/64 inch |
| C [inch] | 0.885 inch |
| D [frac] | 3 5/16 inch |
| D [inch] | 3.315 inch |
| E [frac] | 2 15/32 inch |
| E [inch] | 2.475 inch |
| F [frac] | 7/16 inch |
| F [inch] | 0.435 inch |
| G [frac] | 4 57/64 inch |
| G [inch] | 4.895 inch |
| H [frac] | 3 inch |
| H [inch] | 3 inch |
| Weight per UOM [lbs/UOM] | 0.06 lbs/uom |
Technical Data
| Material group | Plastic |
|---|---|
| Submittal Subcomponent Material | Glass Reinforced Nylon 30% |
