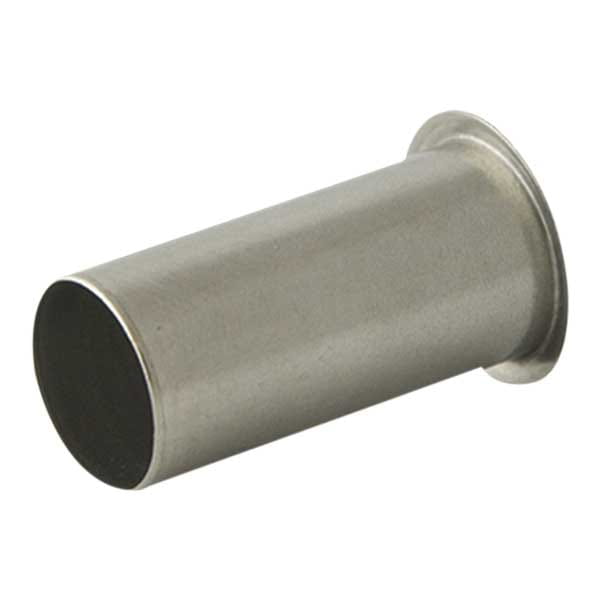

1/4" Insert (stainless steel)
Part no.F5400250
StatusActive
Part information and details
Dimensions
| A [frac] | 23/32 inch |
|---|
| A [inch] | 0.719 inch |
|---|
| B [frac] | 21/64 inch |
|---|
| B [inch] | 0.323 inch |
|---|
| C [frac] | 21/64 inch |
|---|
| C [inch] | 0.323 inch |
|---|
| Weight per UOM [lbs/UOM] | 0 lbs/uom |
|---|
Technical Data
| Operating Pressure 1 [PSI] | 160 psi |
|---|
| Operating Pressure 2 [PSI] | 100 psi |
|---|
| Operating Pressure 3 [PSI] | 80 psi |
|---|
| Operating Temperature 1 [°F] | 73 °f |
|---|
| Operating Temperature 2 [°F] | 180 °f |
|---|
| Operating Temperature 3 [°F] | 200 °f |
|---|
| Material group | Stainless Steel |
|---|
Dimensions
| A [mm / String] | 18.26 mm/string |
|---|
| B [mm / String] | 8.20 mm/string |
|---|
| C [mm / String] | 8.20 mm/string |
|---|
| Weight per UOM [kg/UOM] | 0.0004536 kg/uom |
|---|
Technical Data
| Operating Pressure 1 [bar] | 11 bar |
|---|
| Operating Pressure 2 [bar] | 6.9 bar |
|---|
| Operating Pressure 3 [bar] | 5.5 bar |
|---|
| Operating Temperature 1 [°C] | 23 °C |
|---|
| Operating Temperature 2 [°C] | 82 °C |
|---|
| Operating Temperature 3 [°C] | 93 °C |
|---|
| Material group | Stainless Steel |
|---|
