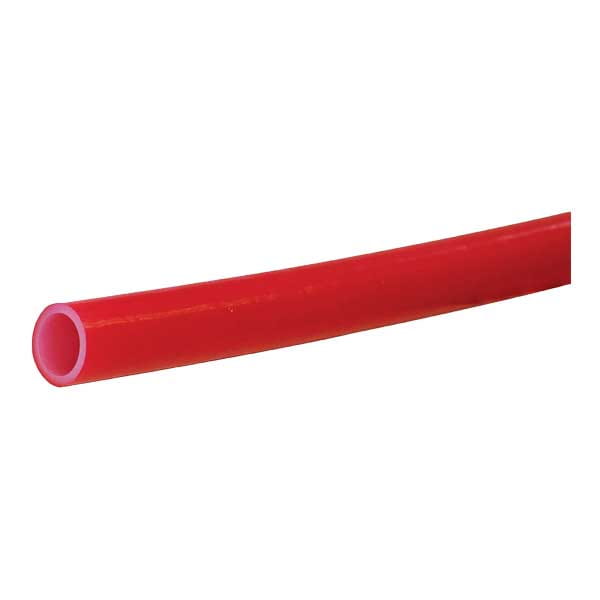

1" Uponor AquaPEX Red, 20-ft. straight length, 200 ft. (10 per bundle)
Part no.F2921000
StatusActive
Find a distributor
Availability of specific products varies by distributor.
Part information and details
Codes
| Codes | IMC|UPC|IBC|IRC|NBC of Canada|IPC|UFGS|NPC of Canada|UMC|NSPC |
|---|
Dimensions
| Inner diameter coil [inch] | 4 inch |
|---|---|
| Outer diameter coil [inch] | 258 inch |
| Coil width [inch] | 4 inch |
| Inner diameter pipe [inch] | 0.862 inch |
| Outer diameter pipe [inch] | 1.125 inch |
| Weight per UOM [lbs/UOM] | 35 lbs/uom |
Listings
| Listings | IAPMO-ES|ICC-ES-PMG|cNSFus-pw|CCMC|PPI TR-4|CSA|UL|U.P.Code|cQAIus P321|BMEC |
|---|
Standards
| Standards | ASTM F1960|ASTM E119/UL 263|ASTM F876|ASTM E84|ASTM F2023|ASTM E814/ULC S115|ASTM F877|AWWA C904|CSA B137.5|ULC S102.2|CSA B214|NSF-61|ULC S101|NSF-14 |
|---|
Technical Data
| Operating Pressure 1 [PSI] | 160 psi |
|---|---|
| Operating Pressure 2 [PSI] | 100 psi |
| Operating Pressure 3 [PSI] | 80 psi |
| Operating Temperature 1 [°F] | 73 °F |
| Operating Temperature 2 [°F] | 180 °F |
| Operating Temperature 3 [°F] | 200 °F |
| Linear expansion rate [inch/10°F/100ft] | 1.1 inch/10°f/100ft |
| Material group | PEX |
| Pipe density [lb/ft³] | 0.0584 lb/ft³ |
| Material Service Pipe | Crosslinked polyethylene (PEX-a) tubing; SDR-9 |
| Thermal conductivity pipe [BTUin/ft²hrF°] | 0.22 btuin/ft²hrf° |
