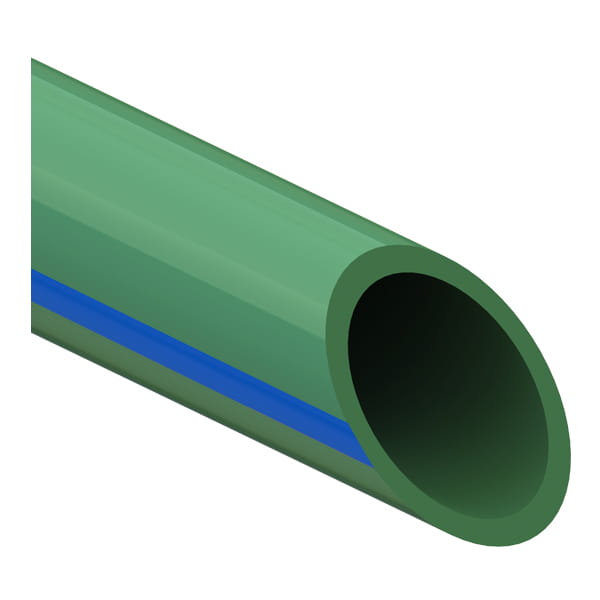

2" Uponor PP-RCT Cold Potable Pipe, SDR 11, 13-ft. straight length

Part no.PR11221320

StatusActive

Download submittal

Find a distributor

Availability of specific products varies by distributor.

Part information and details

Codes

Codes	UPC\|IRC\|IPC\|NPC of Canada\|UMC\|CMC\|CPC\|IMC

Dimensions

Inner diameter pipe [inch]	2.024 inch
Outer diameter pipe [inch]	2.48 inch
Weight per UOM [lbs/UOM]	8.84 lbs/uom

Listings

Listings	ICC-ES-PMG 1106\|IAPMO-R&T 8358\|QAI P321-5\|IAPMO K-12775\|NSF-51

Standards

Standards	NSF-61\|ASTM E84\|ASTM F2389\|CSA B137.11

Technical Data

Operating Pressure 1 [PSI]	252 psi
Operating Pressure 2 [PSI]	140 psi
Operating Pressure 3 [PSI]	85 psi
Operating Temperature 1 [°F]	73 °F
Operating Temperature 2 [°F]	120 °F
Operating Temperature 3 [°F]	180 °F
Linear expansion rate [inch/10°F/100ft]	1 inch/10°f/100ft
Pipe density [lb/ft³]	0.0565 lb/ft³
SDR-class	11
Material Service Pipe	PP-RCT
Thermal conductivity pipe [BTUin/ft²hrF°]	1.67 btuin/ft²hrf°
Prop 65 label required?	No

Codes

Codes	UPC\|IRC\|IPC\|NPC of Canada\|UMC\|CMC\|CPC\|IMC

Dimensions

Inner diameter pipe [mm]	51.4 mm
Outer diameter pipe [mm]	63 mm
Weight per UOM [kg/UOM]	4.01 kg/uom

Listings

Listings	ICC-ES-PMG 1106\|IAPMO-R&T 8358\|QAI P321-5\|IAPMO K-12775\|NSF-51

Standards

Standards	NSF-61\|ASTM E84\|ASTM F2389\|CSA B137.11

Technical Data

Operating Pressure 1 [bar]	17.4 bar
Operating Pressure 2 [bar]	9.7 bar
Operating Pressure 3 [bar]	5.9 bar
Operating Temperature 1 [°C]	23 °C
Operating Temperature 2 [°C]	49 °C
Operating Temperature 3 [°C]	82 °C
Linear expansion rate [mm/5.56°C/30.48m]	25.4 mm/5.56°c/30.48m
Pipe density [g/cm³]	0.905 (PP-RCT) g/cm³
SDR-class	11
Material Service Pipe	PP-RCT
Thermal Conductivity pipe [W/mK]	0.241 (PP-RCT) W/mk
Prop 65 label required?	No
