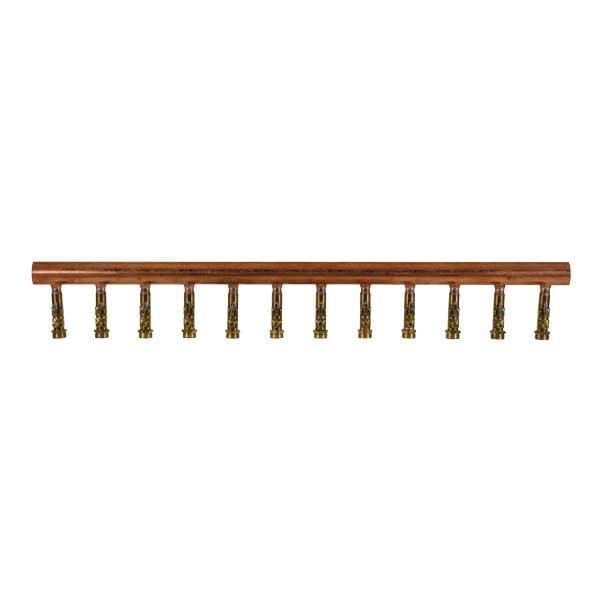

2" x 4' Copper Valved Manifold with R25 Threaded Ball and Balancing Valves, 12 outlets

Part no.F2821225
StatusActive

Part information and details

Dimensions

A [frac]48 inch
A [inch]48 inch
C [frac]2 inch
C [inch]2 inch
D [frac]4 inch
D [inch]4 inch
E [frac]5 55/64 inch
E [inch]5.862 inch
F [frac]35/64 inch
F [inch]0.55 inch
G [frac]7 15/32 inch
G [inch]7.475 inch
H [frac]2 41/64 inch
H [inch]2.633 inch
Manifold Body Size (I.D.) [inch]2 inch
Weight per UOM [lbs/UOM]19.2 lbs/uom

Listings

ListingscNSFus-rfh

Standards

StandardsCSA B125|CSA B137.5|ASTM F877

Technical Data

Cv7.3
End Size 1 [inch|mm]1"
End Type 1ISO 228-G
Flow Rate Max. [gpm]45 gpm
Operating Pressure 1 [PSI]160 psi
Operating Pressure 2 [PSI]100 psi
Operating Pressure 3 [PSI]80 psi
Operating Pressure 4 [PSI]149 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]180 °f
Operating Temperature 3 [°F]200 °f
Operating Temperature 4 [°F]210 °f
Material manifoldType L copper
Material groupCopper
Prop 65 label required?Yes
Material Valve360 Brass
