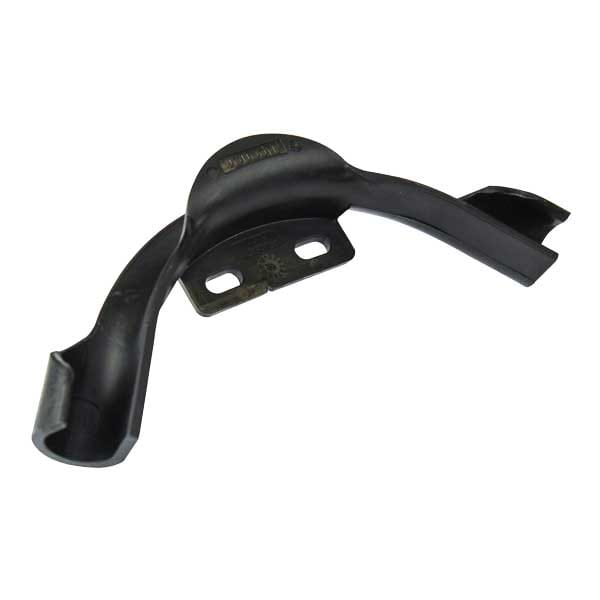

3/4" Plastic Bend Support
Part no.A5150750
StatusActive
Part information and details
Dimensions
| A [frac] | 6 7/64 inch |
|---|
| A [inch] | 6.109 inch |
|---|
| B [frac] | 6 7/64 inch |
|---|
| B [inch] | 6.11 inch |
|---|
| C [frac] | 1 7/32 inch |
|---|
| C [inch] | 1.225 inch |
|---|
| D [frac] | 5 33/64 inch |
|---|
| D [inch] | 5.517 inch |
|---|
| E [frac] | 3 27/32 inch |
|---|
| E [inch] | 3.84 inch |
|---|
| F [frac] | 1 3/16 inch |
|---|
| F [inch] | 1.185 inch |
|---|
| Weight per UOM [lbs/UOM] | 0.15 lbs/uom |
|---|
Technical Data
| Material group | Plastic |
|---|
| Submittal Subcomponent Material | Glass-reinforced nylon |
|---|
Dimensions
| A [mm / String] | 155.17 mm/string |
|---|
| B [mm / String] | 155.20 mm/string |
|---|
| C [mm / String] | 31.12 mm/string |
|---|
| D [mm / String] | 140.13 mm/string |
|---|
| E [mm / String] | 97.54 mm/string |
|---|
| F [mm / String] | 30.10 mm/string |
|---|
| Weight per UOM [kg/UOM] | 0.068 kg/uom |
|---|
Technical Data
| Material group | Plastic |
|---|
| Submittal Subcomponent Material | Glass-reinforced nylon |
|---|
