pr72213750

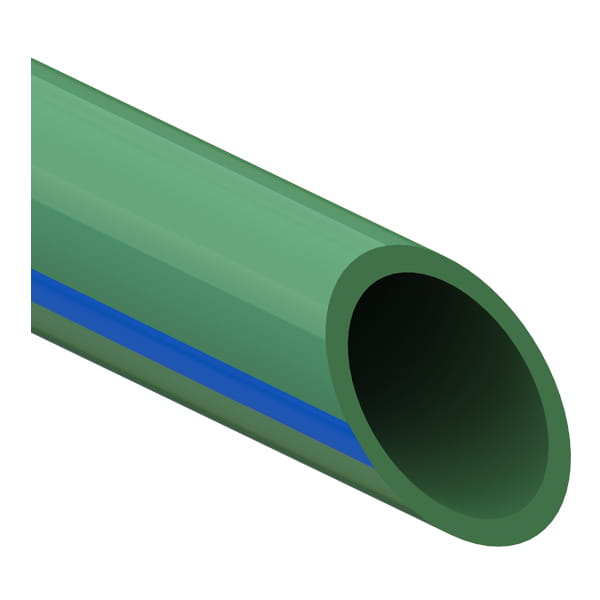

3/4" Uponor PP-RCT Cold Potable Pipe, SDR 7.4, 13-ft. straight length

Part no.PR72213750
StatusActive

Part information and details

Codes

CodesUPC|IRC|IPC|NPC of Canada|UMC|CMC|CPC|IMC

Dimensions

Inner diameter pipe [inch]0.709 inch
Outer diameter pipe [inch]0.984 inch
Weight per UOM [lbs/UOM]0.52 lbs/uom

Listings

ListingsICC-ES-PMG 1106|IAPMO-R&T 8358|QAI P321-5|IAPMO K-12775|NSF-51

Standards

StandardsNSF-61|ASTM E84|ASTM F2389|CSA B137.11

Technical Data

Operating Pressure 1 [PSI]335 psi
Operating Pressure 2 [PSI]221 psi
Operating Pressure 3 [PSI]100 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]120 °f
Operating Temperature 3 [°F]180 °f
Linear expansion rate [inch/10°F/100ft]1 inch/10°f/100ft
Pipe density [lb/ft³]0.0565 lb/ft³
SDR-class7.4
Material Service PipePP-RCT + GF
Thermal conductivity pipe [BTUin/ft²hrF°]1.67 btuin/ft²hrf°
Prop 65 label required?Yes
