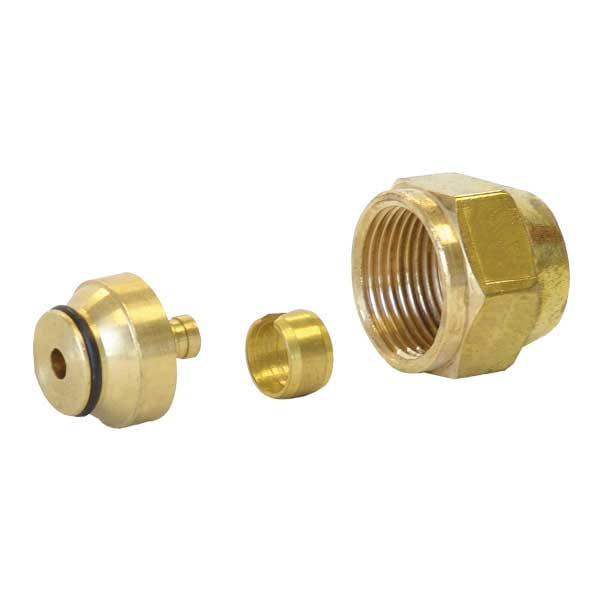

5/8" QS-style Compression Fitting Assembly, R25 thread

Part no.A4030625
StatusActive

Part information and details

Codes

CodesIMC|IRC|NBC of Canada|UMC

Dimensions

A [frac]1 47/64 inch
A [inch]1.729 inch
B [frac]1 1/2 inch
B [inch]1.5 inch
C [frac]1 1/16 inch
C [inch]1.064 inch
D [frac]1 3/16 inch
D [inch]1.18 inch
Weight per UOM [lbs/UOM]0.4 lbs/uom

Listings

ListingscNSFus-rfh|ICC-ES-PMG 1012

Standards

StandardsCSA B137.5|R32: ISO 228-G 1"|ASTM F877

Technical Data

End Size 1 [inch|mm]5/8"
End Size 2 [inch|mm]1"
End Type 1QS
End Type 2ISO 228-G
Operating Pressure 1 [PSI]160 psi
Operating Pressure 2 [PSI]100 psi
Operating Pressure 3 [PSI]80 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]180 °f
Operating Temperature 3 [°F]200 °f
Material groupBrass
Material o-ringNitrile (Buna N)
Prop 65 label required?Yes
Submittal Subcomponent MaterialFitting: CA 360 Brass
