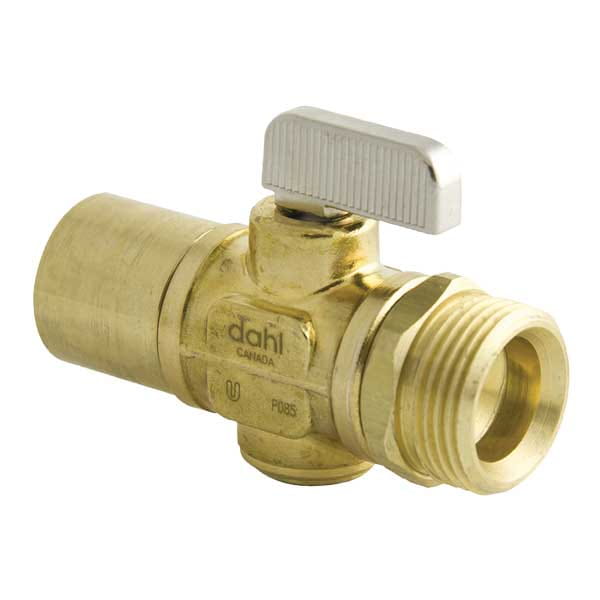

Ball Valve, R25 Thread x 3/4" Copper Adapter

Part no.A5802575

StatusActive

Download submittal

Part information and details

Dimensions

A [frac]	2 7/16 inch
A [inch]	2.433 inch
B [frac]	1 27/32 inch
B [inch]	1.846 inch
C [frac]	1 23/64 inch
C [inch]	1.364 inch
Weight per UOM [lbs/UOM]	0.5 lbs/uom

Standards

Standards	CSA B125\|ASME A112.18.1

Technical Data

Cold working pressure (CWP) [psi]	246.6 psi
End Size 1 [inch\|mm]	1" inch\|mm
End Size 2 [inch\|mm]	3/4" inch\|mm
End Type 1	ISO 228-G
End Type 2	Sweat
Operating Pressure 1 [PSI]	160 psi
Operating Pressure 2 [PSI]	100 psi
Operating Pressure 3 [PSI]	80 psi
Operating Temperature 1 [°F]	73 °f
Operating Temperature 2 [°F]	180 °f
Operating Temperature 3 [°F]	200 °f
Material group	Brass
Prop 65 label required?	Yes
Submittal Subcomponent Material	CA 360 Brass

Dimensions

A [mm / String]	61.80 mm/string
B [mm / String]	46.90 mm/string
C [mm / String]	34.64 mm/string
Weight per UOM [kg/UOM]	0.227 kg/uom

Standards

Standards	CSA B125\|ASME A112.18.1

Technical Data

Cold working pressure (CWP) [bar]	17 bar
End Type 1	ISO 228-G
End Type 2	Sweat
Operating Pressure 1 [bar]	11 bar
Operating Pressure 2 [bar]	6.9 bar
Operating Pressure 3 [bar]	5.5 bar
Operating Temperature 1 [°C]	23 °C
Operating Temperature 2 [°C]	82 °C
Operating Temperature 3 [°C]	93 °C
Material group	Brass
Prop 65 label required?	Yes
Submittal Subcomponent Material	CA 360 Brass
