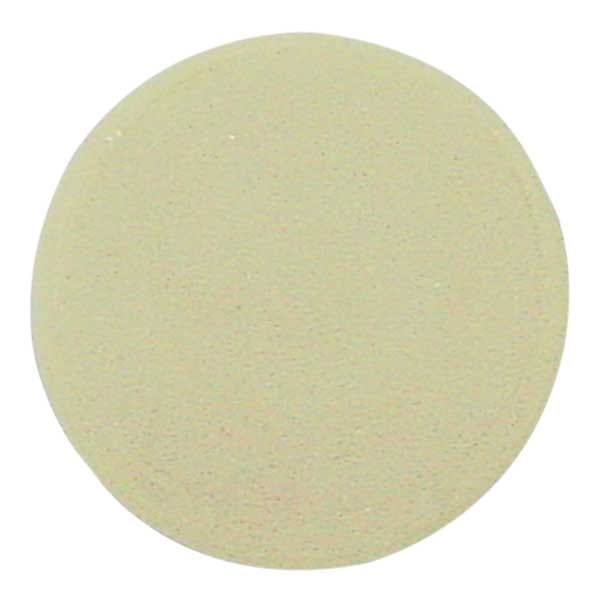

Basic End Cap Gasket, spare part, R32

Part no.A2400032

Find a distributor

Availability of specific products varies by distributor.

Part information and details


A [frac]1 37/64 inch
A [inch]1.58 inch
B [frac]1 37/64 inch
B [inch]1.58 inch
C [frac]1/8 inch
C [inch]0.125 inch
E [frac]1/8 inch
E [inch]0.125 inch
Weight per UOM [lbs/UOM]0.01 lbs/uom


StandardsASTM F877

Technical Data

End Size 1 [inch|mm]1-1/4"
End Type 1ISO 228-G
Material GasketEPDM, Peroxide Cured, Durometer 80
Operating Pressure 1 [PSI]160 psi
Operating Pressure 2 [PSI]100 psi
Operating Pressure 3 [PSI]80 psi
Operating Temperature 1 [°F]73 °F
Operating Temperature 2 [°F]180 °F
Operating Temperature 3 [°F]200 °F
Material groupBrass
Prop 65 label required?Yes
Submittal Subcomponent MaterialDezincification Resistant Brass
