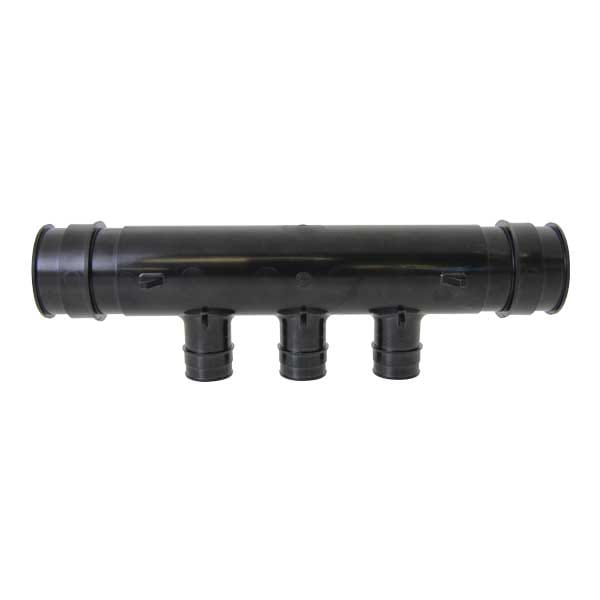

EP Flow-through Multi-port Tee, 3 (1") outlets, 2" x 2" ProPEX

Part no.Q2232102
StatusActive

Part information and details

Codes

CodesUPC|IBC|IRC|IPC|NPC of Canada|UMC|NSPC|IMC

Dimensions

A [frac]10 35/64 inch
A [inch]10.554 inch
B [frac]2 5/32 inch
B [inch]2.157 inch
C [frac]6 15/64 inch
C [inch]6.24 inch
D [frac]2 5/32 inch
D [inch]2.157 inch
E [frac]1 1/8 inch
E [inch]1.12 inch
F [frac]2 inch
F [inch]2.0 inch
G [frac]1 1/16 inch
G [inch]1.06 inch
H [frac]1 3/16 inch
H [inch]1.191 inch
I [frac]3 19/64 inch
I [inch]3.291 inch
J [frac]2 13/16 inch
J [inch]2.82 inch
Equivalent length outlet 2 [ft]9.02 ft
Equivalent length through [ft]3.87 ft
Weight per UOM [lbs/UOM]0.55 lbs/uom

Listings

ListingsIAPMO-ES|HUD MR 1269|ICC-ES-PMG|cNSFus-pw|UL|U.P.Code|cQAIus P321

Standards

StandardsASTM E814/ULC S115|ASTM F877|ASTM F1960|CSA B137.5|ULC S102.2|ASTM E119/UL 263|NSF-61|ULC S101|NSF-14

Technical Data

Cv Outlet 213.4
Cv Through99
End Size 1 [inch|mm]2"
End Size 2 [inch|mm]2"
End Size 3 [inch|mm]3/4"
End Type 1ProPEX
End Type 2ProPEX
End Type 3ProPEX
Operating Pressure 1 [PSI]160 psi
Operating Pressure 2 [PSI]100 psi
Operating Pressure 3 [PSI]80 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]180 °f
Operating Temperature 3 [°F]200 °f
Material groupEngineered Polymer
