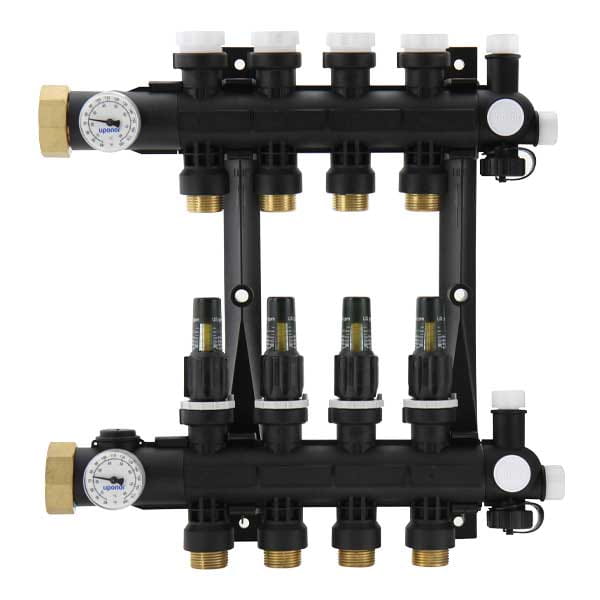

EP Heating Manifold Assembly with Flow Meter, 6-loop

Part no.A2670601

Find a distributor

Availability of specific products varies by distributor.

Part information and details


A [frac]17 3/4 inch
A [inch]17.754 inch
B [frac]14 3/16 inch
B [inch]14.184 inch
C [frac]3 7/64 inch
C [inch]3.11 inch
D [frac]1 31/32 inch
D [inch]1.969 inch
E [frac]4 25/64 inch
E [inch]4.39 inch
F [frac]1 3/16 inch
F [inch]1.181 inch
G [frac]1 13/16 inch
G [inch]1.811 inch
H [frac]9 27/32 inch
H [inch]9.843 inch
Weight per UOM [lbs/UOM]6.14 lbs/uom

Technical Data

Material axelStainless Steel
Cv Branch1.4
End Size 1 [inch|mm]1-1/4"
End Size 2 [inch|mm]3/4"
End Type 1ISO 228-G
End Type 2ISO 228-G
Flow Rate Max. [gpm]15.4 gpm
Material GasketIT-C
Operating Pressure 1 [PSI]87 psi
Operating Pressure 2 [PSI]72 psi
Operating Pressure 3 [PSI]58 psi
Operating Pressure 4 [PSI]44 psi
Operating Temperature 1 [°F]140 °F
Operating Temperature 2 [°F]158 °F
Operating Temperature 3 [°F]176 °F
Operating Temperature 4 [°F]194 °F
Material manifoldPA66-GF30
Material groupEngineered Polymer
Operating temperature min. [°F]44.6 °f
Material o-ringEPDM
Material springStainless Steel
Test pressure air max. [psi]101.5 psi
Test pressure water max. [psi]145 psi
Prop 65 label required?Yes
Submittal Subcomponent MaterialManifold: PA66-GF30 Valve Insert, Handwheels: POM Metal Inserts: Brass C38500 Axel: Stainless Steel Spring: Stainless Steel O-ring: EPDM
