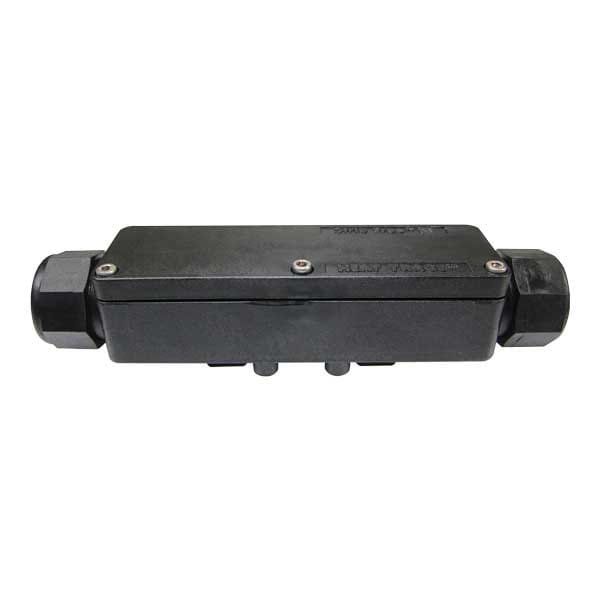

Heat-trace Tee Splice, SF-T

Part no.5994000

StatusActive

Find a distributor

Availability of specific products varies by distributor.

Weight per UOM [lbs/UOM]	1.18 lbs/uom

Listings	IECEx SIR 11.0136U

Ambient temperature max. [F]	122 °f
Ambient temperature min. [F]	-40 °f
Operating voltage [V]	275 V
Output rating at 24VAC [A]	16 a
Output rating at 24VDC [A]	16 a
Submittal Subcomponent Material	Body: polyamide; conductors: nickel-coated brass

Weight per UOM [kg/UOM]	0.535 kg/uom

Listings	IECEx SIR 11.0136U

Ambient temperature max. [°C]	50 °C
Ambient temperature min. [°C]	-40 °C
Operating voltage [V]	275 V
Output rating at 24VAC [A]	16 a
Output rating at 24VDC [A]	16 a
Submittal Subcomponent Material	Body: polyamide; conductors: nickel-coated brass
