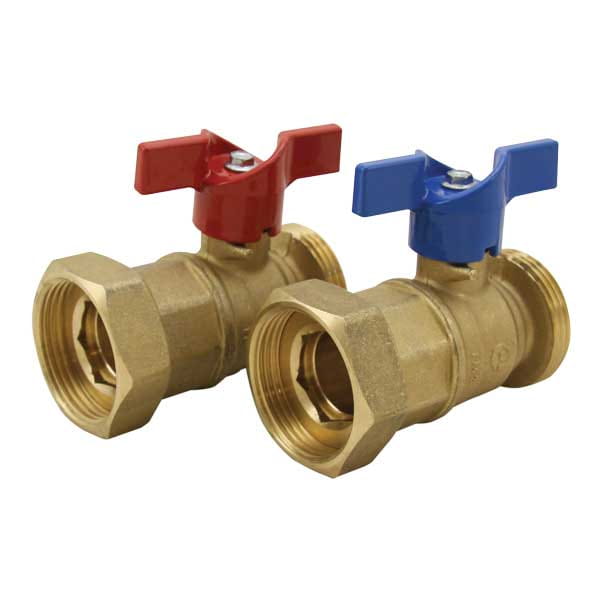

Manifold Supply and Return Ball Valves, set of 2

Part no.A2631252

StatusActive

Download submittal

Part information and details

Dimensions

Weight per UOM [lbs/UOM]	2.87 lbs/uom

Standards

Standards	R32: ISO 228-G 1¼"\|ASTM F877

Technical Data

Cv Through	23.8
Cv	23.8
End Size 1 [inch\|mm]	1-1/4" inch\|mm
End Size 2 [inch\|mm]	1-1/4" inch\|mm
End Type 1	ISO 228-G
End Type 2	ISO 228-G
Operating Pressure 1 [PSI]	160 psi
Operating Pressure 2 [PSI]	100 psi
Operating Pressure 3 [PSI]	80 psi
Operating Temperature 1 [°F]	73 °f
Operating Temperature 2 [°F]	180 °f
Operating Temperature 3 [°F]	200 °f
Material group	Brass
Prop 65 label required?	Yes

Dimensions

Weight per UOM [kg/UOM]	1.304 kg/uom

Standards

Standards	R32: ISO 228-G 1¼"\|ASTM F877

Technical Data

Cv Through	23.8
Cv	23.8
End Type 1	ISO 228-G
End Type 2	ISO 228-G
Operating Pressure 1 [bar]	11 bar
Operating Pressure 2 [bar]	6.9 bar
Operating Pressure 3 [bar]	5.5 bar
Operating Temperature 1 [°C]	23 °C
Operating Temperature 2 [°C]	82 °C
Operating Temperature 3 [°C]	93 °C
Material group	Brass
Prop 65 label required?	Yes
