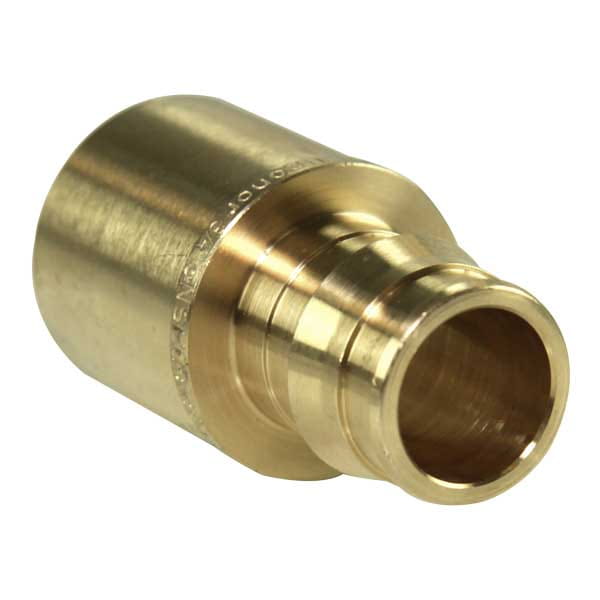

ProPEX Brass Fitting Adapter, 3/4" PEX x 1" Copper

Part no.Q5507510
StatusActive

Part information and details

Codes

CodesIMC|IBC|IRC|NPC of Canada|UMC

Dimensions

A [frac]2 1/16 inch
A [inch]2.07 inch
B [frac]7/64 inch
B [inch]0.11 inch
C [frac]1 1/64 inch
C [inch]1.015 inch
D [frac]1 1/8 inch
D [inch]1.125 inch
E [frac]1 5/32 inch
E [inch]1.15 inch
F [frac]9/16 inch
F [inch]0.563 inch
G [frac]15/16 inch
G [inch]0.945 inch
Equivalent length through [ft]3.1 ft
Weight per UOM [lbs/UOM]0.18 lbs/uom

Listings

ListingsIAPMO-ES|ICC-ES-PMG|cNSFus-rfh

Standards

StandardsASTM F1960|CSA B137.5|NSF-14|ASTM F877

Technical Data

Cv11.4
End Size 1 [inch|mm]3/4"
End Size 2 [inch|mm]1"
End Type 1ProPEX
End Type 2Sweat
Operating Pressure 1 [PSI]160 psi
Operating Pressure 2 [PSI]100 psi
Operating Pressure 3 [PSI]80 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]180 °f
Operating Temperature 3 [°F]200 °f
Prop 65 label required?Yes
Submittal Subcomponent MaterialC36000 brass
