ProPEX; Adapter; Brass; male thread; q5521010

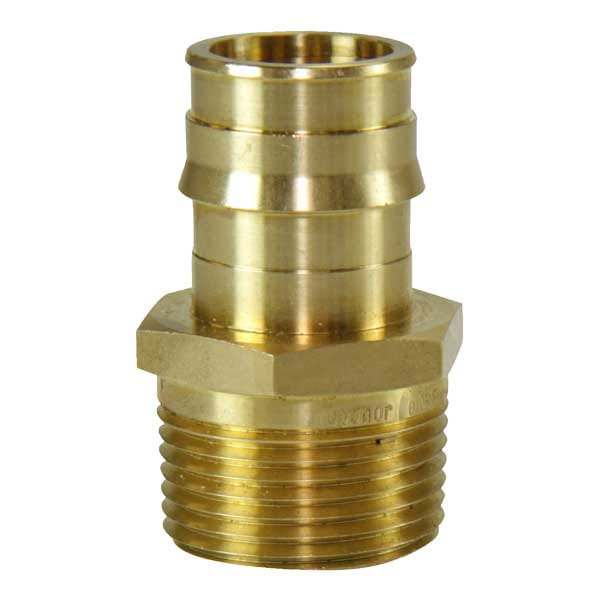

ProPEX Brass Male Threaded Adapter, 1" PEX x 1" NPT

Part no.Q5521010
StatusActive

Part information and details

Codes

CodesIMC|IBC|IRC|NPC of Canada|UMC

Dimensions

A [frac]2 15/64 inch
A [inch]2.236 inch
B [frac]1 1/16 inch
B [inch]1.055 inch
C [frac]1 17/32 inch
C [inch]1.526 inch
D [frac]3/8 inch
D [inch]0.372 inch
E [frac]1 3/16 inch
E [inch]1.181 inch
F [frac]1 21/64 inch
F [inch]1.335 inch
Equivalent length through [ft]3.2 ft
Weight per UOM [lbs/UOM]0.45 lbs/uom

Listings

ListingsIAPMO-ES|ICC-ES-PMG|cNSFus-rfh

Standards

StandardsASTM F1960|CSA B137.5|NSF-14|ASTM F877

Technical Data

Cv19.9
End Size 1 [inch|mm]1"
End Size 2 [inch|mm]1"
End Type 1ProPEX
End Type 2MNPT
Operating Pressure 1 [PSI]160 psi
Operating Pressure 2 [PSI]100 psi
Operating Pressure 3 [PSI]80 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]180 °f
Operating Temperature 3 [°F]200 °f
Prop 65 label required?Yes
Submittal Subcomponent MaterialC36000 brass
