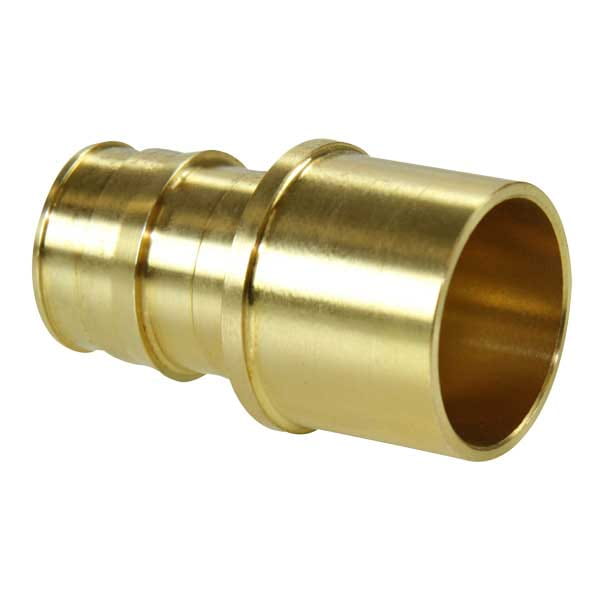

ProPEX Brass Sweat Adapter, 2" PEX x 2" Copper

Part no.Q5512020
StatusActive

Part information and details

Codes

CodesIMC|IBC|IRC|NPC of Canada|UMC

Dimensions

A [frac]3 51/64 inch
A [inch]3.797 inch
B [frac]5/16 inch
B [inch]0.31 inch
C [frac]1 11/32 inch
C [inch]1.34 inch
D [frac]2 9/64 inch
D [inch]2.133 inch
E [frac]2 11/16 inch
E [inch]2.68 inch
Equivalent length through [ft]5.3 ft
Weight per UOM [lbs/UOM]2 lbs/uom

Listings

ListingsIAPMO-ES|ICC-ES-PMG|cNSFus-rfh

Standards

StandardsASTM F1960|CSA B137.5|NSF-14|ASTM F877

Technical Data

Cv83.6
End Size 1 [inch|mm]2"
End Size 2 [inch|mm]2"
End Type 1ProPEX
End Type 2Sweat
Operating Pressure 1 [PSI]160 psi
Operating Pressure 2 [PSI]100 psi
Operating Pressure 3 [PSI]80 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]180 °f
Operating Temperature 3 [°F]200 °f
Prop 65 label required?Yes
Submittal Subcomponent MaterialC36000 brass
