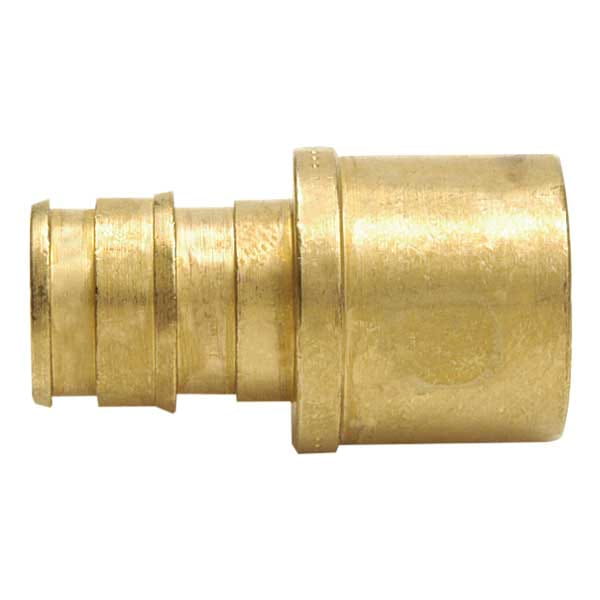

ProPEX Brass Sweat Adapter, 5/8" PEX x 1/2" Copper
Part no.Q4516350
StatusActive
Find a distributor
Availability of specific products varies by distributor.
Part information and details
Codes
| Codes | IMC|IBC|IRC|NPC of Canada|UMC |
|---|
Dimensions
| A [frac] | 1 31/64 inch |
|---|---|
| A [inch] | 1.491 inch |
| B [frac] | 1/8 inch |
| B [inch] | 0.125 inch |
| C [frac] | 1/2 inch |
| C [inch] | 0.5 inch |
| D [frac] | 5/8 inch |
| D [inch] | 0.629 inch |
| E [frac] | 15/16 inch |
| E [inch] | 0.94 inch |
| F [frac] | 5/16 inch |
| F [inch] | 0.315 inch |
| G [frac] | 55/64 inch |
| G [inch] | 0.866 inch |
| Weight per UOM [lbs/UOM] | 0.11 lbs/uom |
Listings
| Listings | IAPMO-ES|ICC-ES-PMG|cNSFus-rfh |
|---|
Standards
| Standards | ASTM F1960|CSA B137.5|NSF-14|ASTM F877 |
|---|
Technical Data
| End Size 1 [inch|mm] | 5/8" |
|---|---|
| End Size 2 [inch|mm] | 1/2" |
| End Type 1 | ProPEX |
| End Type 2 | Sweat |
| Operating Pressure 1 [PSI] | 160 psi |
| Operating Pressure 2 [PSI] | 100 psi |
| Operating Pressure 3 [PSI] | 80 psi |
| Operating Temperature 1 [°F] | 73 °F |
| Operating Temperature 2 [°F] | 180 °F |
| Operating Temperature 3 [°F] | 200 °F |
| Material group | Brass |
| Prop 65 label required? | Yes |
