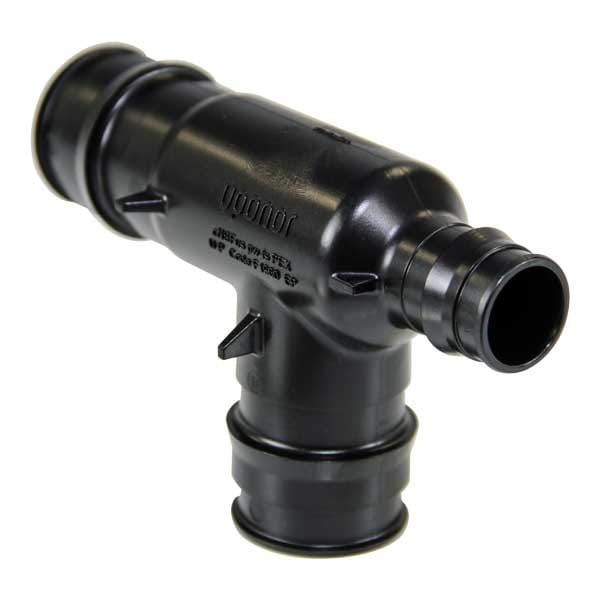

ProPEX EP Reducing Tee, 1 1/4" PEX x 3/4" PEX x 1 1/4" PEX

Part no.Q4751373
StatusActive

Part information and details

Dimensions

A [frac]1 29/64 inch
A [inch]1.455 inch
B [frac]1 13/64 inch
B [inch]1.2 inch
C [frac]1 inch
C [inch]1 inch
D [frac]61/64 inch
D [inch]0.955 inch
E [frac]3/4 inch
E [inch]0.75 inch
F [frac]1 29/64 inch
F [inch]1.455 inch
G [frac]4 39/64 inch
G [inch]4.61 inch
H [frac]2 57/64 inch
H [inch]2.886 inch
I [frac]1 13/16 inch
I [inch]1.82 inch
Equivalent length branch [ft]7.41 ft
Weight per UOM [lbs/UOM]0.13 lbs/uom

Technical Data

Cv Branch12
Cv Through18.8
End Size 1 [inch|mm]1-1/4"
End Size 2 [inch|mm]3/4"
End Size 3 [inch|mm]1-1/4"
End Type 1ProPEX
End Type 2ProPEX
End Type 3ProPEX
Operating Pressure 1 [PSI]160 psi
Operating Pressure 2 [PSI]100 psi
Operating Pressure 3 [PSI]80 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]180 °f
Operating Temperature 3 [°F]200 °f
