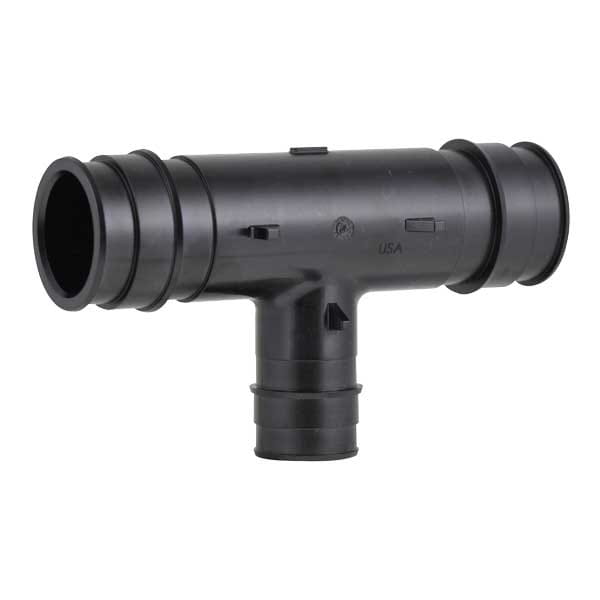

ProPEX EP Reducing Tee, 3" PEX x 3" PEX x 2 1/2" PEX

Part no.Q4753325
StatusActive

Part information and details

Codes

CodesUPC|IBC|IRC|IPC|NPC of Canada|UMC|NSPC|IMC

Dimensions

A [frac]3 3/8 inch
A [inch]3.38 inch
B [frac]2 1/2 inch
B [inch]2.5 inch
C [frac]2 1/2 inch
C [inch]2.5 inch
D [frac]3 3/8 inch
D [inch]3.38 inch
E [frac]1 35/64 inch
E [inch]1.55 inch
F [frac]2 53/64 inch
F [inch]2.83 inch
G [frac]11 49/64 inch
G [inch]11.76 inch
H [frac]5 59/64 inch
H [inch]5.917 inch
I [frac]4 13/64 inch
I [inch]4.2 inch
Equivalent length branch [ft]22.2 ft
Equivalent length through [ft]3 ft
Weight per UOM [lbs/UOM]1.65 lbs/uom

Listings

ListingsHUD MR 1269|IAPMO-ES|ICC-ES-PMG|cNSFus-pw|UL|U.P.Code|cQAIus P321

Standards

StandardsASTM E119|ASTM F877|ASTM F1960|ASTM E814|CSA B137.5|NSF-61|ASTM E84|NSF-14

Technical Data

Cv Branch82.2
Cv Through288.3
End Size 1 [inch|mm]3"
End Size 2 [inch|mm]3"
End Size 3 [inch|mm]2-1/2"
End Type 1ProPEX
End Type 2ProPEX
End Type 3ProPEX
Operating Pressure 1 [PSI]160 psi
Operating Pressure 2 [PSI]100 psi
Operating Pressure 3 [PSI]80 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]180 °f
Operating Temperature 3 [°F]200 °f
Material groupEngineered Polymer
