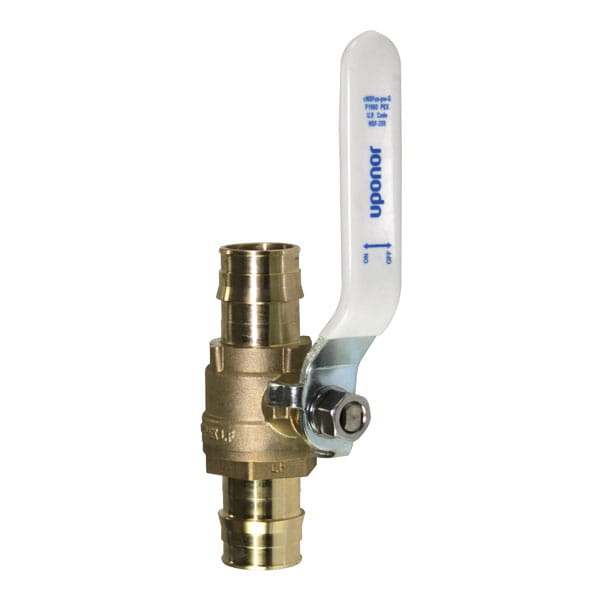

ProPEX LF Brass Commercial Ball Valve (full port) SS Ball and Stem 1 1/2" PEX x 1 1/2" PEX

Part no.LFC4821515SS
StatusActive

Part information and details

Codes

CodesUPC|IBC|IRC|IPC|NPC of Canada|UMC|IMC

Dimensions

A [frac]1 45/64 inch
A [inch]1.705 inch
B [frac]2 1/16 inch
B [inch]2.059 inch
C [frac]3 7/64 inch
C [inch]3.114 inch
D [frac]5 37/64 inch
D [inch]5.584 inch
E [frac]1 1/32 inch
E [inch]1.024 inch
F [frac]63/64 inch
F [inch]0.98 inch
G [frac]8 3/8 inch
G [inch]8.368 inch
H [frac]4 9/64 inch
H [inch]4.138 inch
I [frac]2 3/64 inch
I [inch]2.047 inch
Weight per UOM [lbs/UOM]1.99 lbs/uom

Listings

ListingscNSFus-pw-G|U.P.Code

Standards

StandardsNSF-372|ASTM F877|NSF-359|ASTM F1960|CSA B137.5|NSF-61|NSF-14

Technical Data

Cold working pressure (CWP) [psi]250 psi
Cv58.9
End Size 1 [inch|mm]1-1/2"
End Size 2 [inch|mm]1-1/2"
End Type 1ProPEX
End Type 2ProPEX
Operating Pressure 1 [PSI]200 psi
Operating Temperature 1 [°F]200 °f
