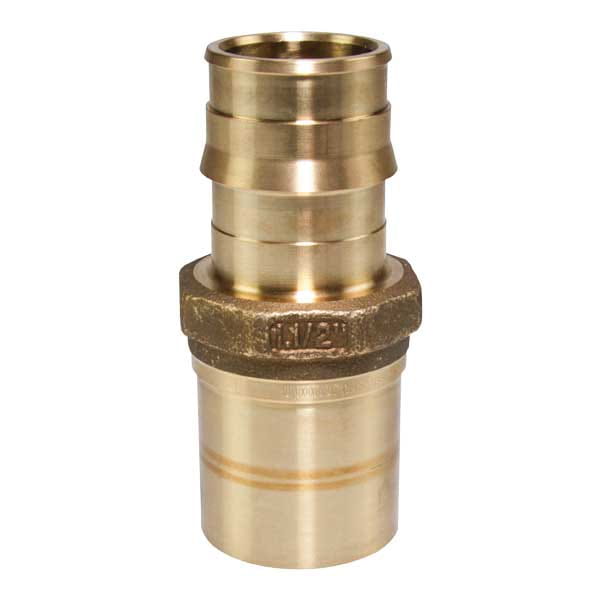

ProPEX LF Brass Copper Press Fitting Adapter, 1 1/2" PEX x 1 1/2" Copper

Part no.LFP4501515
StatusActive

Part information and details

Codes

CodesUPC|IBC|IRC|IPC|NPC of Canada|UMC|NSPC|IMC

Dimensions

A [frac]3 7/8 inch
A [inch]3.88 inch
B [frac]47/64 inch
B [inch]0.739 inch
C [frac]1 7/16 inch
C [inch]1.437 inch
D [frac]1 5/8 inch
D [inch]1.625 inch
E [frac]1 27/32 inch
E [inch]1.85 inch
Equivalent length through [ft]4.8 ft
Weight per UOM [lbs/UOM]0.62 lbs/uom

Listings

ListingsIAPMO-ES|cNSFus-pw-G|U.P.Code|ICC-PMG-1412

Standards

StandardsASME B16.51|IAPMO PS 117|NSF-372|ASTM F877|ICC-ES LC1002|ASTM F1960|CSA B137.5|NSF-61|NSF-14

Technical Data

Cv43.5
End Size 1 [inch|mm]1-1/2"
End Size 2 [inch|mm]1-1/2"
End Type 1ProPEX
End Type 2Copper Press
Material GasketEPDM
Operating Pressure 1 [PSI]160 psi
Operating Pressure 2 [PSI]100 psi
Operating Pressure 3 [PSI]80 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]180 °f
Operating Temperature 3 [°F]200 °f
Prop 65 label required?Yes
Submittal Subcomponent MaterialUNS C27453
