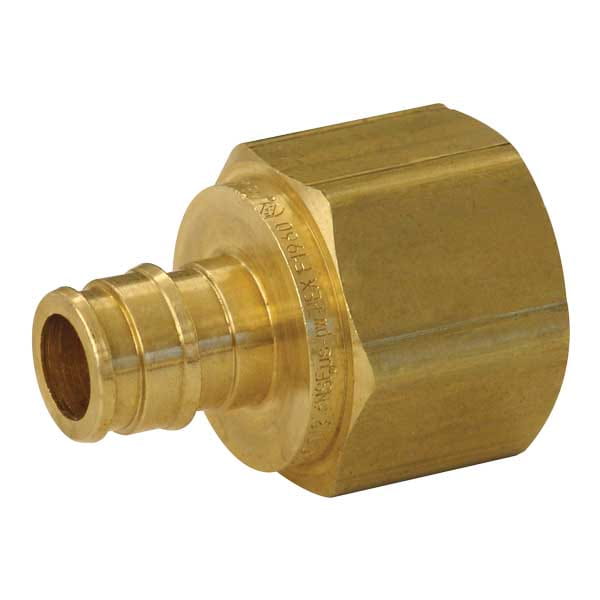

ProPEX LF Brass Female Threaded Adapter, 1/2" PEX x 3/4" NPT

Part no.LF4575075
StatusActive

Part information and details

Codes

CodesUPC|IBC|IRC|IPC|NPC of Canada|UMC|NSPC|IMC

Dimensions

A [frac]1 5/8 inch
A [inch]1.629 inch
B [frac]59/64 inch
B [inch]0.92 inch
C [frac]1 3/8 inch
C [inch]1.371 inch
D [frac]23/64 inch
D [inch]0.367 inch
E [frac]45/64 inch
E [inch]0.709 inch
F [frac]1 3/16 inch
F [inch]1.187 inch
Weight per UOM [lbs/UOM]0.4 lbs/uom

Listings

ListingsIAPMO-ES|ICC-ES-PMG|cNSFus-pw-G|U.P.Code

Standards

StandardsNSF-372|ASTM F877|ASTM F1960|CSA B137.5|NSF-61|NSF-14

Technical Data

End Size 1 [inch|mm]1/2"
End Size 2 [inch|mm]3/4"
End Type 1ProPEX
End Type 2FNPT
Operating Pressure 1 [PSI]160 psi
Operating Pressure 2 [PSI]100 psi
Operating Pressure 3 [PSI]80 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]180 °f
Operating Temperature 3 [°F]200 °f
Material groupBrass
Prop 65 label required?Yes
Submittal Subcomponent MaterialC69300 Brass
