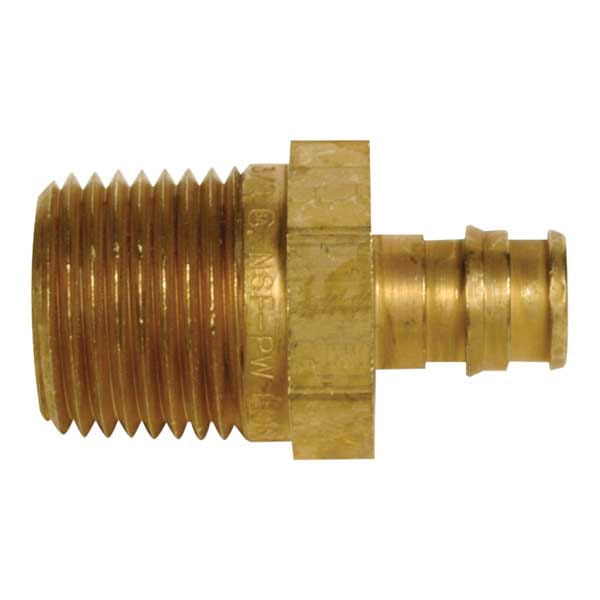

ProPEX LF Brass Male Threaded Adapter, 1/2" PEX x 1/2" NPT
Part no.LF4525050
StatusActive
Find a distributor
Availability of specific products varies by distributor.
Part information and details
Codes
| Codes | UPC|IBC|IRC|IPC|NPC of Canada|UMC|NSPC|IMC |
|---|
Dimensions
| A [frac] | 1 41/64 inch |
|---|---|
| A [inch] | 1.639 inch |
| B [frac] | 15/16 inch |
| B [inch] | 0.93 inch |
| C [frac] | 31/32 inch |
| C [inch] | 0.963 inch |
| D [frac] | 25/64 inch |
| D [inch] | 0.396 inch |
| E [frac] | 45/64 inch |
| E [inch] | 0.709 inch |
| F [frac] | 55/64 inch |
| F [inch] | 0.86 inch |
| G [frac] | 31/64 inch |
| G [inch] | 0.481 inch |
| Equivalent length through [ft] | 2.3 ft |
| Weight per UOM [lbs/UOM] | 0.12 lbs/uom |
Listings
| Listings | IAPMO-ES|ICC-ES-PMG|cNSFus-pw-G|U.P.Code |
|---|
Standards
| Standards | NSF-372|ASTM F877|ASTM F1960|CSA B137.5|NSF-61|NSF-14 |
|---|
Technical Data
| Cv | 5 |
|---|---|
| End Size 1 [inch|mm] | 1/2" |
| End Size 2 [inch|mm] | 1/2" |
| End Type 1 | ProPEX |
| End Type 2 | MNPT |
| Operating Pressure 1 [PSI] | 160 psi |
| Operating Pressure 2 [PSI] | 100 psi |
| Operating Pressure 3 [PSI] | 80 psi |
| Operating Temperature 1 [°F] | 73 °F |
| Operating Temperature 2 [°F] | 180 °F |
| Operating Temperature 3 [°F] | 200 °F |
| Material group | LF Brass |
| Prop 65 label required? | Yes |
