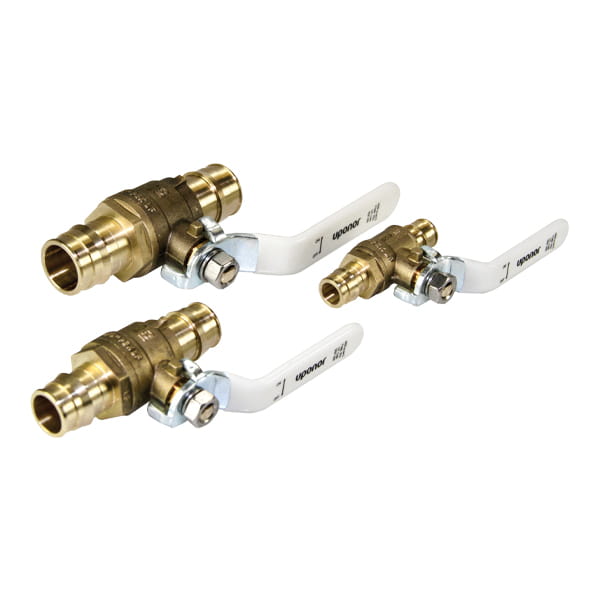

ProPEX LF Brass Stop and Drain Ball Valve (full port), 3/4" PEX x 3/4" PEX

Part no.LFD4817575
StatusActive

Part information and details

Codes

CodesUPC|IBC|IRC|IPC|NPC of Canada|UMC|IMC

Dimensions

A [frac]15/16 inch
A [inch]0.945 inch
B [frac]1 21/32 inch
B [inch]1.657 inch
C [frac]1 27/32 inch
C [inch]1.841 inch
D [frac]4 15/64 inch
D [inch]4.241 inch
E [frac]39/64 inch
E [inch]0.602 inch
F [frac]51/64 inch
F [inch]0.803 inch
G [frac]6 3/64 inch
G [inch]6.04 inch
H [frac]2 7/16 inch
H [inch]2.443 inch
I [frac]1 13/64 inch
I [inch]1.205 inch
Weight per UOM [lbs/UOM]0.6 lbs/uom

Listings

ListingscNSFus-pw-G|U.P.Code

Standards

StandardsNSF-372|ASTM F877|NSF-359|ASTM F1960|CSA B137.5|NSF-61|NSF-14

Technical Data

Cv16.6
End Size 1 [inch|mm]3/4"
End Size 2 [inch|mm]3/4"
End Type 1ProPEX
End Type 2ProPEX
Operating Pressure 1 [PSI]200 psi
Operating Temperature 1 [°F]200 °f
