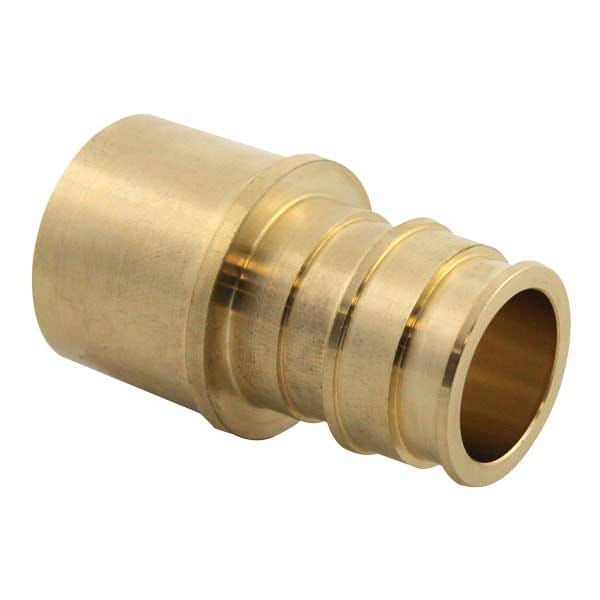

ProPEX LF Brass Sweat Adapter, 1 1/4" PEX x 1 1/4" Copper

Part no.LF4511313
StatusActive

Part information and details

Codes

CodesUPC|IBC|IRC|IPC|NPC of Canada|UMC|NSPC|IMC

Dimensions

A [frac]2 39/64 inch
A [inch]2.608 inch
B [frac]3/16 inch
B [inch]0.193 inch
C [frac]31/32 inch
C [inch]0.97 inch
D [frac]1 3/8 inch
D [inch]1.38 inch
E [frac]1 41/64 inch
E [inch]1.64 inch
Equivalent length through [ft]3.9 ft
Weight per UOM [lbs/UOM]0.35 lbs/uom

Listings

ListingsIAPMO-ES|ICC-ES-PMG|cNSFus-pw-fs-G|U.P.Code

Standards

StandardsNSF-372|ASTM F877|ASTM F1960|CSA B137.5|UL 1821|NSF-61|NSF-14

Technical Data

Cv34
End Size 1 [inch|mm]1-1/4"
End Size 2 [inch|mm]1-1/4"
End Type 1ProPEX
End Type 2Sweat
Operating Pressure 1 [PSI]160 psi
Operating Pressure 2 [PSI]100 psi
Operating Pressure 3 [PSI]80 psi
Operating Temperature 1 [°F]73 °f
Operating Temperature 2 [°F]180 °f
Operating Temperature 3 [°F]200 °f
Prop 65 label required?Yes
Submittal Subcomponent MaterialC69300 brass
